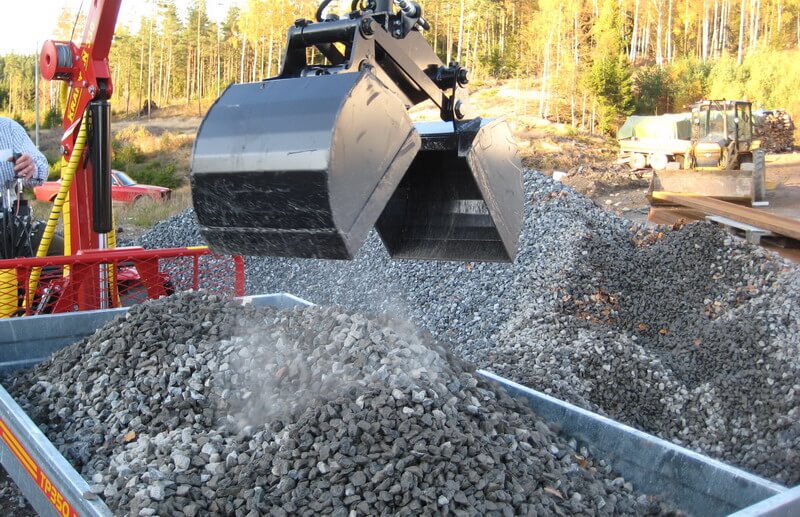

Gripskopa G50L is a completely proprietary bucket where we have taken into account customers’ needs and wishes. It is strong and robust, but does not weigh more than 59kg.

The reason to why we developed our own bucket Is that it is able to open completely , which facilitates when the material is to be collected in the bucket.

G50L quickly opens and closes with full force. Removing the comp with a quick release kit SGS4 facilitates the exchange between the bucket and grapple.

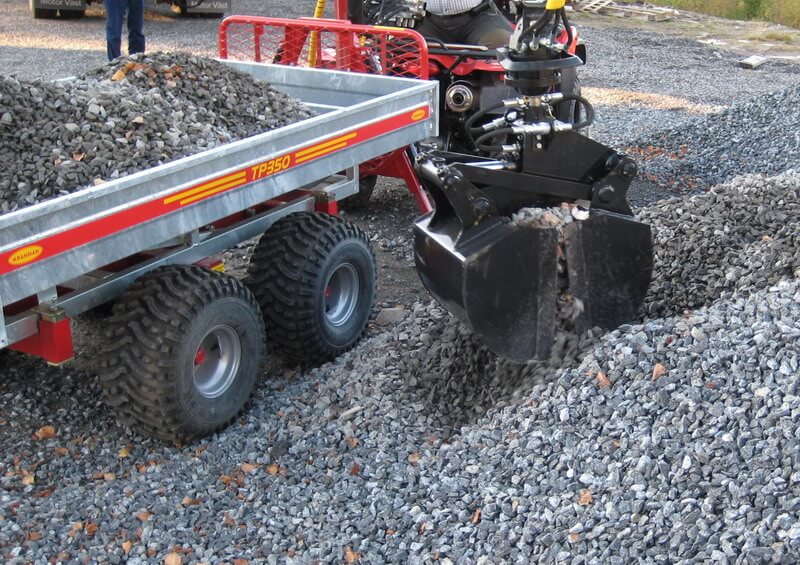

Kranman DX220 mounted on T2000ex grappletrailer with grab bucket

Specification

Height600 mm
Width370 mm
Closed520 mm
Max opening1 230 mm
Capacityca 50 l
Weight without rotator59 kg
Surface treatmentPowder coating
Mounting rotator40 mm
Wear steelHardox

Specification

Height600 mm
Width370 mm
Closed520 mm
Max opening1 230 mm
Capacityca 50 l
Weight without rotator59 kg
Surface treatmentPowder coating
Mounting rotator40 mm
Wear steelHardox

Optional accessories Clamshell G50L
