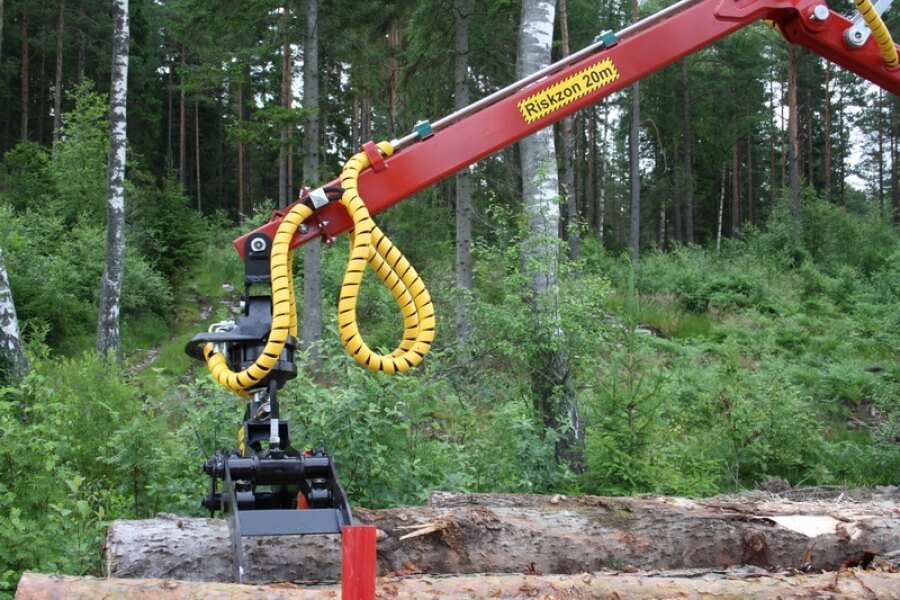

Kranman 30-60 is a smooth and light crane that requires little oil flow. The price includes the grapple, rotator and 6-lever valve package. Gate and support legs are added to the price.

Specification

Length4.4 m
Lifting force 1.2m500 kg
Lifting force 3 m240 kg
Gripper0,8 m²
Extend0.9m
System pressure180 bar
Weight302 kg incl. gate, support legs and grapple
Weight232 kg incl. gripper and rotator
Recommended oil flow10-25 l/min

Specification

Length4.4 m
Lifting force 1.2m500 kg
Lifting force 3 m240 kg
Gripper0,8 m²
Extend0.9m
System pressure180 bar
Weight302 kg incl. gate, support legs and grapple
Weight232 kg incl. gripper and rotator
Recommended oil flow10-25 l/min
