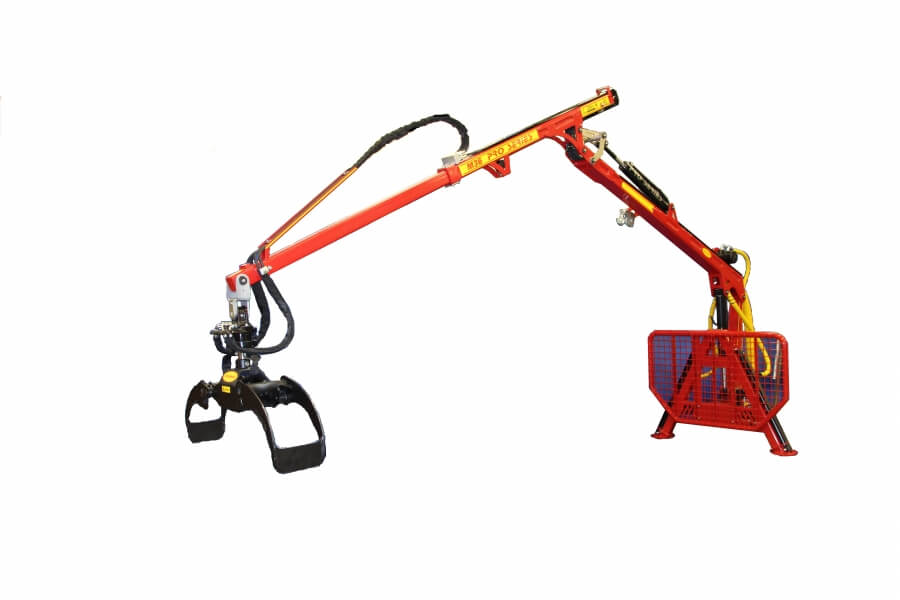

The price includes the grapple, rotator and 6-lever valve package. Gate and support legs are added to the price.

  • 780 kg lift capacity at 1 meter, 300 kg lift capacity at 3 m.
  • 4-point comfort joint, provides the same speed on the stick’s movement scheme.
  • Optimized extend to facilitate loading at a speed of 0.7 m/second.
  • Stronger turn.
  • Protection over the support leg cylinders.
  • Lighting in the crane tip.
  • New efficient gripper.
  • Stronger gate, support legs and A-frame.
  • The hoses on the top of the faucet are well protected and easy to access.
  • Protected hoses in comfort joint.

Specification

Length4,6 m
Lifting force at 1 m including gripper and rotator780 kg
Lifting force at 3 m including gip and rotator300 kg
Gripper0,08
Extend1 m
System pressure180 bar
Weight340 kg incl. gate, support legs and grapple
Weight265 kg incl. gripper and rotator
Recommended oil flow10-20 l/min

Specification

Length4,6 m
Lifting force at 1 m including gripper and rotator780 kg
Lifting force at 3 m including gip and rotator300 kg
Gripper0,08
Extend1 m
System pressure180 bar
Weight340 kg incl. gate, support legs and grapple
Weight265 kg incl. gripper and rotator
Recommended oil flow10-20 l/min
