Grab loader T3500 with 30-50 crane

Art. no T3500

Grab loader T3500 with 30-50 crane

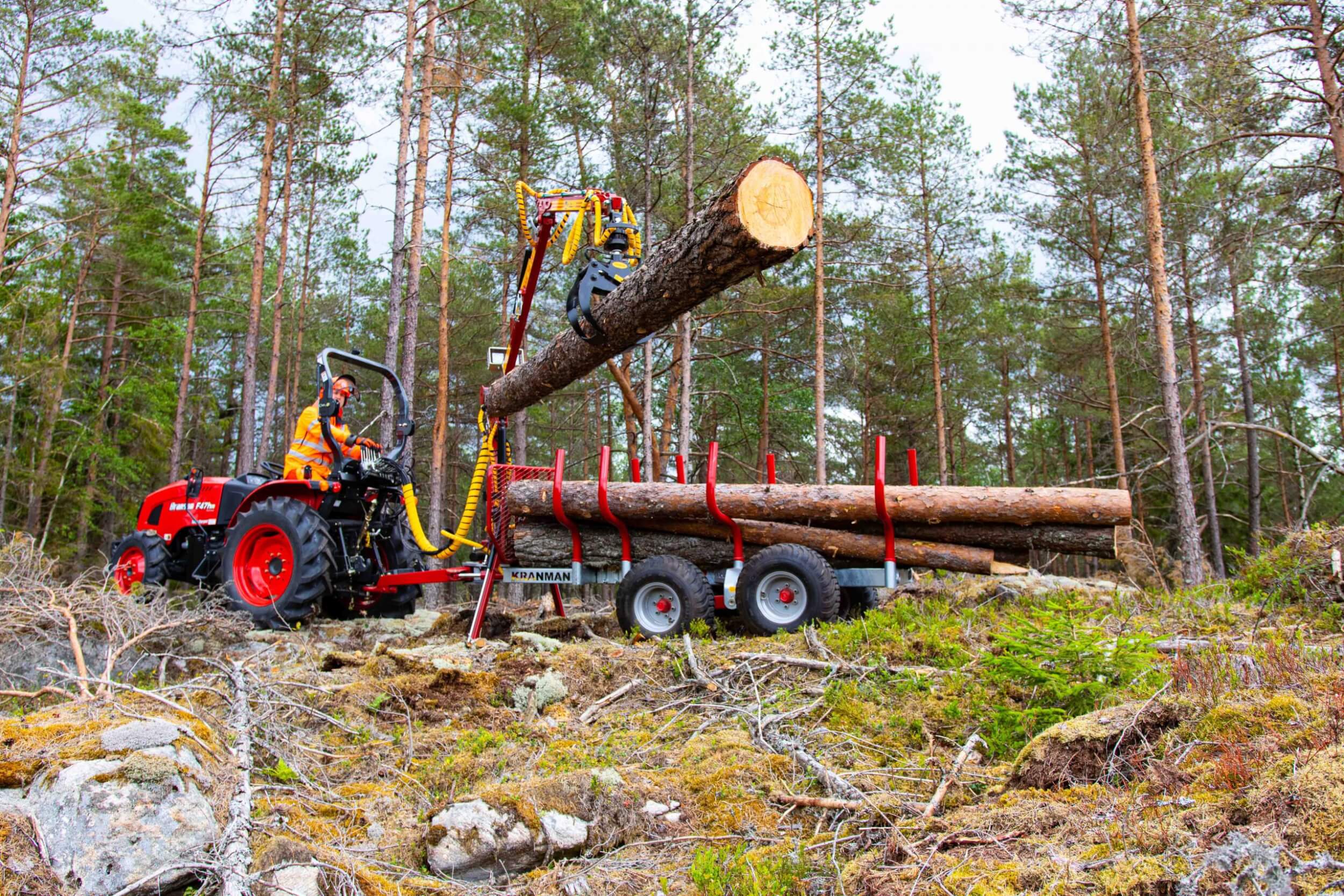

Grab loader trailer T3500 – a tractor trailer for the smaller tractors

It is heavily constructed and has a load capacity of 3500kg. The most important changes that the T3500 has compared to its predecessor are that the trailer can easily be extended by 100cm and the possibility to order frame steering.

With the help of these functions, the trailer can be adapted to the current timber range. The frame steering prevents the trailer from cutting across but follows the tractor’s tracks.

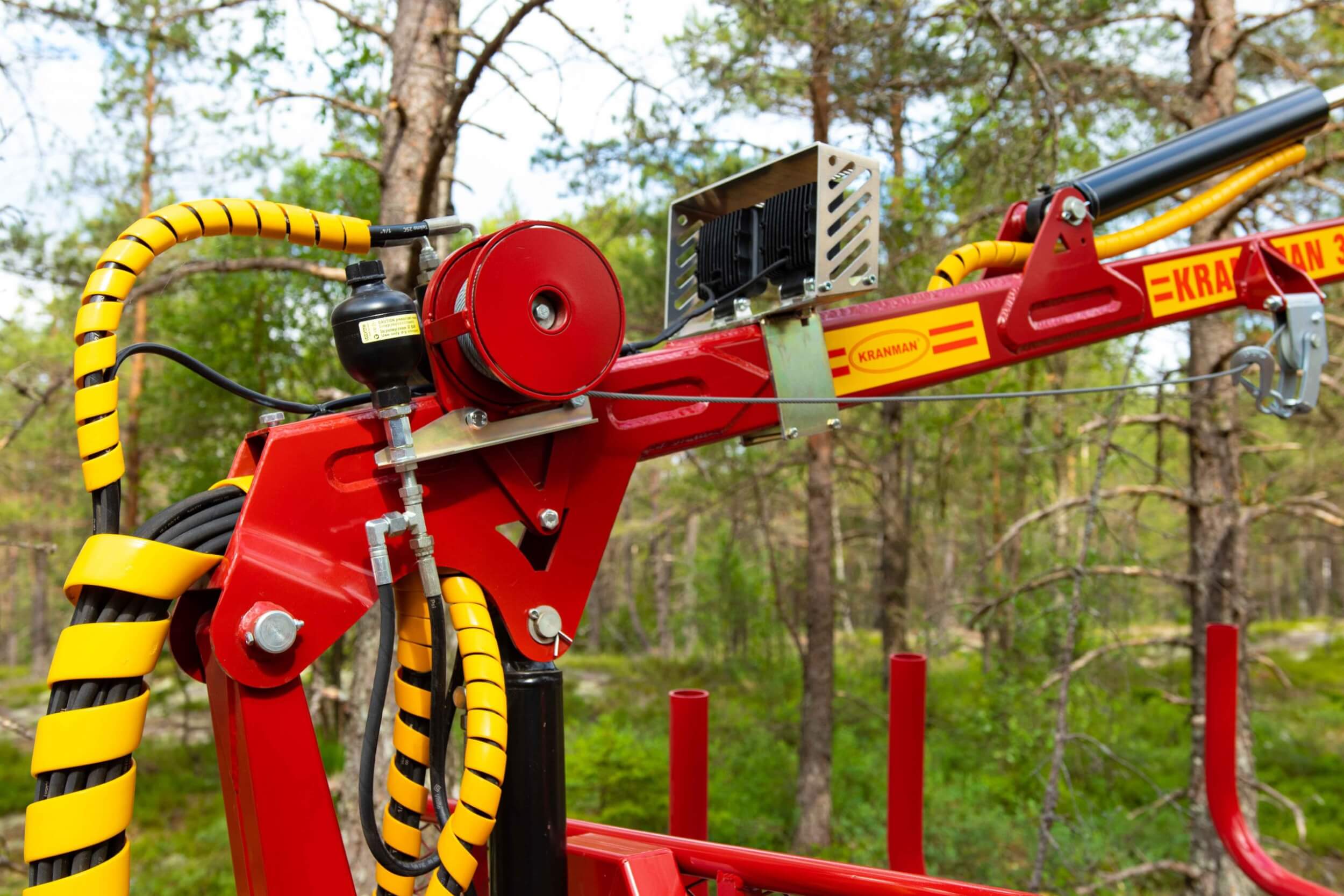

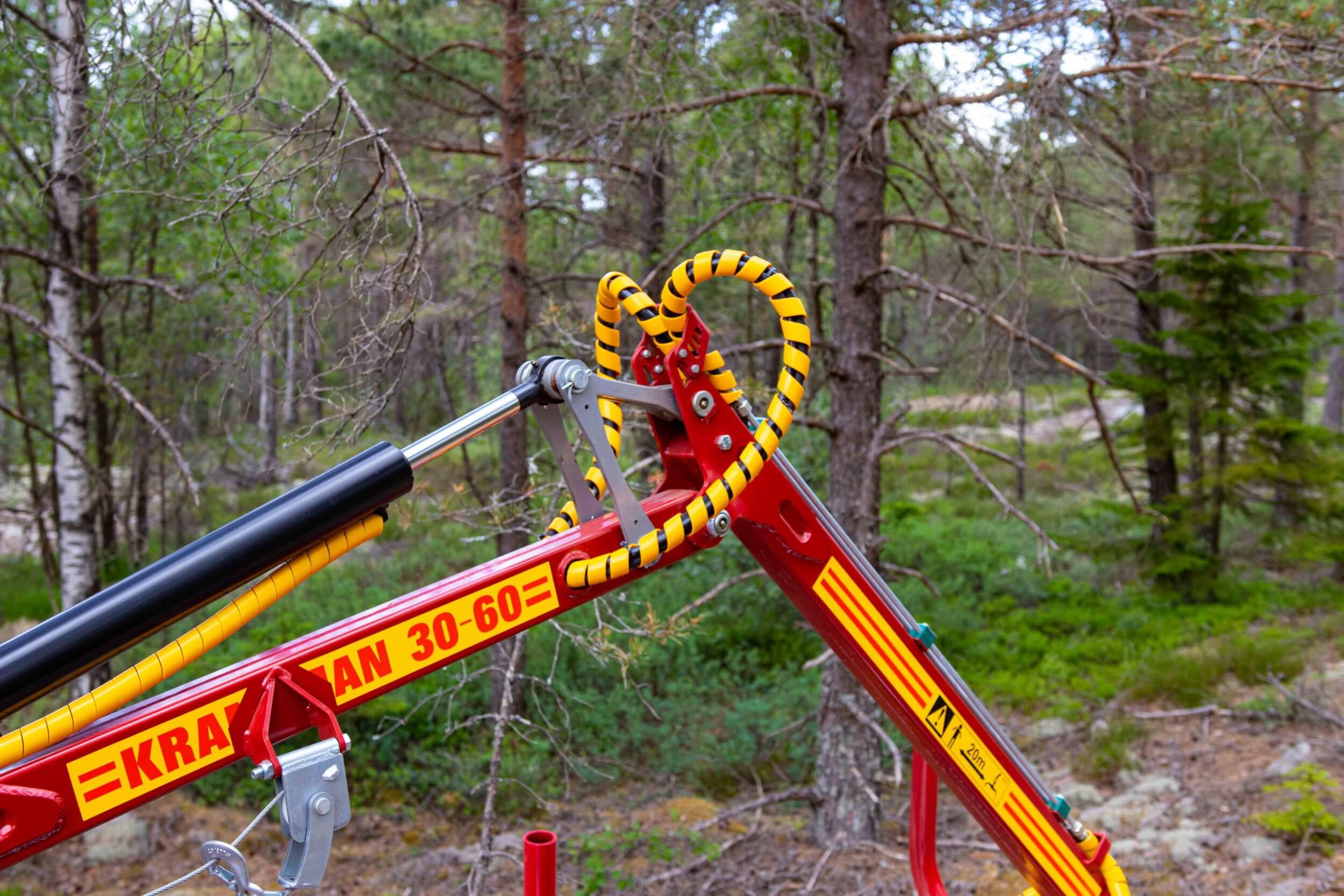

Kranman T3500 comes with the K30-50 crane, which has a range of 3.5 metres. A 4.4-metre push-out crane is one of the options.



Kranman T3500 tractortrailer with 30 60 crane and Branson F47

Specification

Width165 cm
Length450-550
Loading area1.2 m²
Length cargo space285-385 cm
Weight490 kg
Wheels300/65-12
Max load3,500 kg
DriveNej
Load poles6 moveable and swivel. Optional: 8pcs
Towbar50 mm loop
Frame controlAvailable as an accessory
Weight crane with support leg, gate, rotator and grapple276 kg
Crane 1.2 m500 kg
Crane 3 m240 kg
Grab loader T3500 with 30-50 crane

Specification

Width165 cm
Length450-550
Loading area1.2 m²
Length cargo space285-385 cm
Weight490 kg
Wheels300/65-12
Max load3,500 kg
DriveNej
Load poles6 moveable and swivel. Optional: 8pcs
Towbar50 mm loop
Frame controlAvailable as an accessory
Weight crane with support leg, gate, rotator and grapple276 kg
Crane 1.2 m500 kg
Crane 3 m240 kg

Optional accessories Grab loader T3500 with 30-50 crane

Remote hydraulic winch HV500

Art. no HV500

Mechanical coordinated lever valve package

Art. no DCV-M

2-lever valve package Electricity on / off

Art. no DCV-E

Frame control

Art. no RS4500

Crane dampers

Art. no BK-KD

Work lights on crane

Art. no BL30W

Extra load carriers T4600

Art. no ST4600

Pressure pack

Art. no KTS19

Accessories Grab loader T3500 with 30-50 crane

Tipper FL350

Art. no FL250

Plant tippflak DX220

Art. no DX220

Brushwood trailer FL150

Art. no FL150

Rice carrier RR400

Art. no RR400

Quick coupler FL350 for Bison, “big”

Art. no K360

Clamshell G50L

Art. no G50L

Ditch Bucket DS55

Art. no DS55

Kranman 105E Energy clip

Art. no 105E

Brushwood grapple RG12

Art. no RG12

Quick release kit grab SGS4

Art. no SGS4

Quick-release kit for winch and tipper

Art. no HVK5

Lifting bracket

Art. no LB110

Timber tongs

Art. no TS200
VAT not included in prices.
