Grab loader T4600 with M46 crane

Art. no T4600

Grab loader T4600 with M46 crane

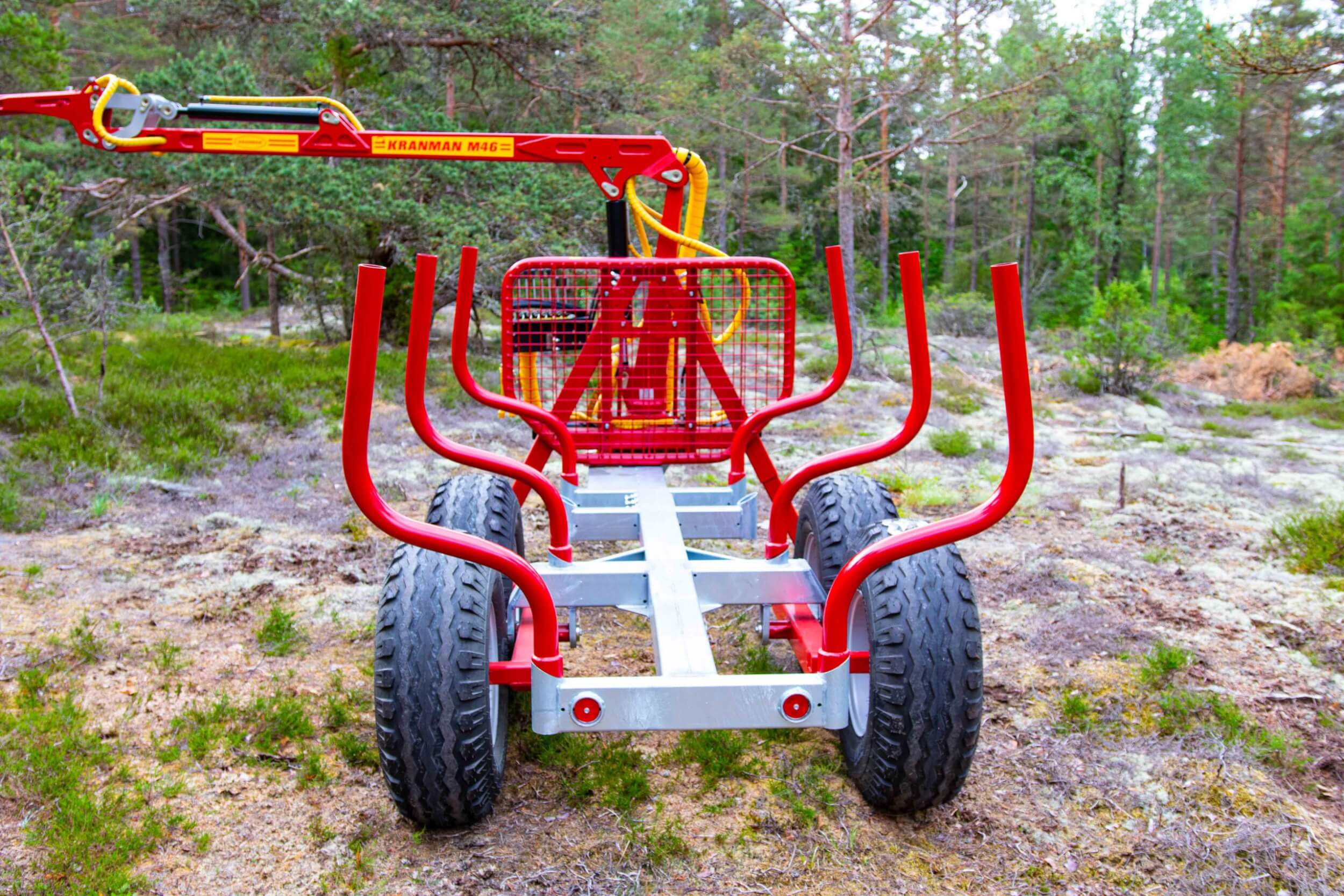

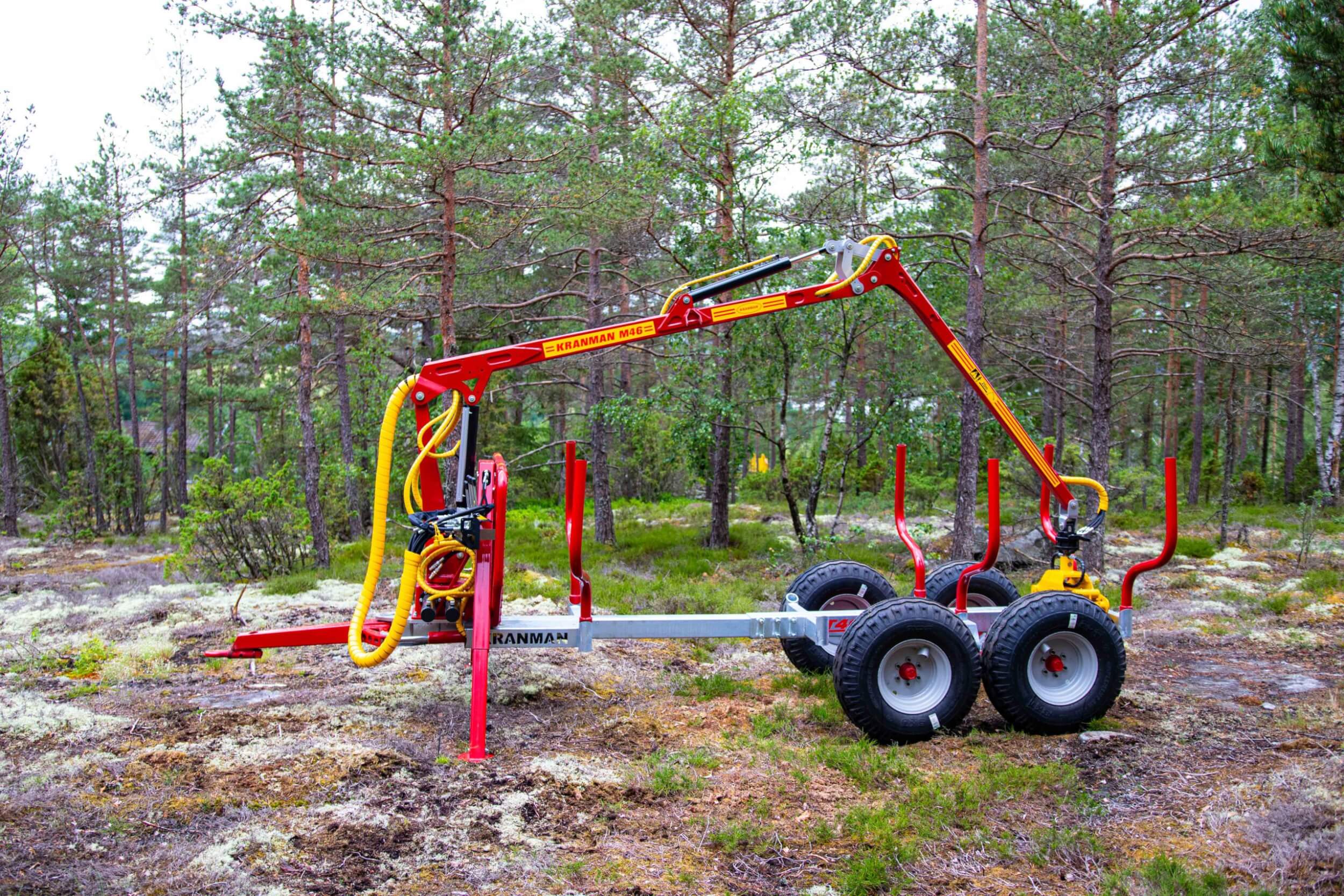

Grab loader trailer T4600 – a heavy-duty tractor trailer

A heavy-duty tractor trailer designed for smaller tractors. The front and rear can be easily pulled apart and thus change the length of the load surface by 100 centimeters. This means that the trailer can flexibly handle a wide variety of timber lengths.

The trailer is equipped as standard with the powerful M46 crane with a 4.6-metre reach. Can be upgraded to the M56 crane with a reach of 5.6 m.



Kranman T4600 with M46 crane and Branson 4125R

Specification

Width165 cm
Total length450-550 cm
Length cargo space285-385 cm
Length from gate to center bogie170-270 cm
Loading area1,1
Weight530 kg
Wheels11,50-80x15,3"
Max load4 600 kg
DriveNej
Load poles6 pcs movable and rotatable (up to 8 pcs as an option)
Towbar50 mm loop
Frame controlAvailable as option
Lifting force max crane M46390 kg
Lifting force at 1,2 m1 450 kg
Weight495 kg, including crane, outriggers, gate, grapple and rotator:
System pressure195 bar
Recommended oil flow20 l/m
Grab loader T4600 with M46 crane

Specification

Width165 cm
Total length450-550 cm
Length cargo space285-385 cm
Length from gate to center bogie170-270 cm
Loading area1,1
Weight530 kg
Wheels11,50-80x15,3"
Max load4 600 kg
DriveNej
Load poles6 pcs movable and rotatable (up to 8 pcs as an option)
Towbar50 mm loop
Frame controlAvailable as option
Lifting force max crane M46390 kg
Lifting force at 1,2 m1 450 kg
Weight495 kg, including crane, outriggers, gate, grapple and rotator:
System pressure195 bar
Recommended oil flow20 l/m

Optional accessories Grab loader T4600 with M46 crane

M56 crane with extension

Art. no KU100

Remote hydraulic winch HV1000

Art. no HV1000

Mechanical coordinated lever valve package

Art. no DCV-M

2-lever valve package Electricity on / off

Art. no DCV-E

Frame control

Art. no RS4500

Crane dampers

Art. no BK-KD

Extra load carriers T4600

Art. no ST4600

Hydraulic brake

Art. no BRT2

Pressure pack

Art. no KTS19

Accessories Grab loader T4600 with M46 crane

Kranman Energy Clip 155E

Art. no 155E

G60L Grab

Art. no G60L

Ditch Bucket DS55

Art. no DS55

Quick release kit grab SGS5

Art. no SGS5

Storage box on the gate

Art. no BK-F3
VAT not included in prices.
