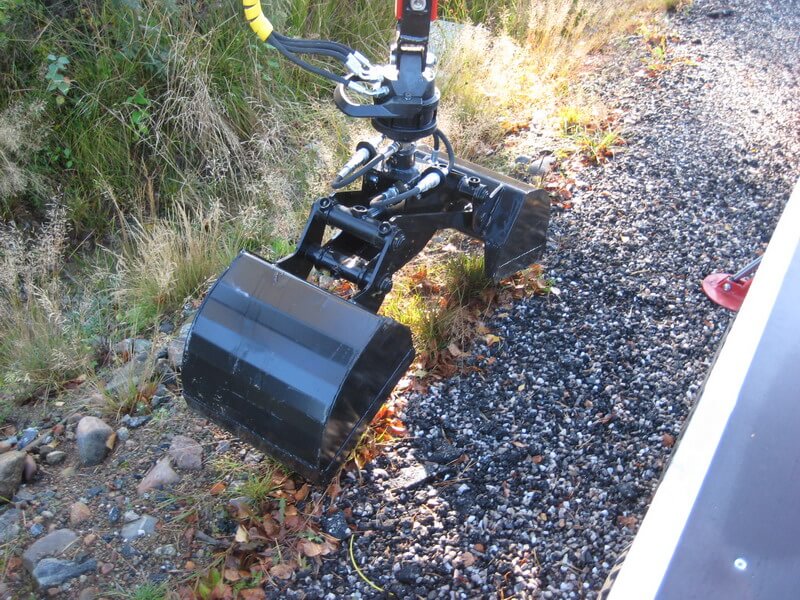

Kranman’s G60L grab is a completely own developed bucket where we have taken into account the needs and wishes of the customers. It is strong and robust but does not weigh more than 65 kg. The G60L is adapted for 50mm spigot and fits the M46 and M56 cranes. 60 liter volume.

The reason why we have chosen our own bucket instead of cup plates for the grapple is that we have a larger cylinder on the bucket and thus get more power when you pull together, and that it manages to open completely which facilitates when the material is to be collected in the bucket.

The G60L opens quickly and closes at full strength. We have a quick release kit SGS5 that facilitates switching between grapple and grab.

Specification

Height622 mm
Width485 mm
Max opening1232 mm
Capacity60 litres
Weight without rotator65 kg
Surface treatmentPowder coating
Mounting rotator50 mm
Wear steelHardox

Specification

Height622 mm
Width485 mm
Max opening1232 mm
Capacity60 litres
Weight without rotator65 kg
Surface treatmentPowder coating
Mounting rotator50 mm
Wear steelHardox
