Grab loader T5000EX with M46 crane

Art. no T5000EX

Grab loader T5000EX with M46 crane

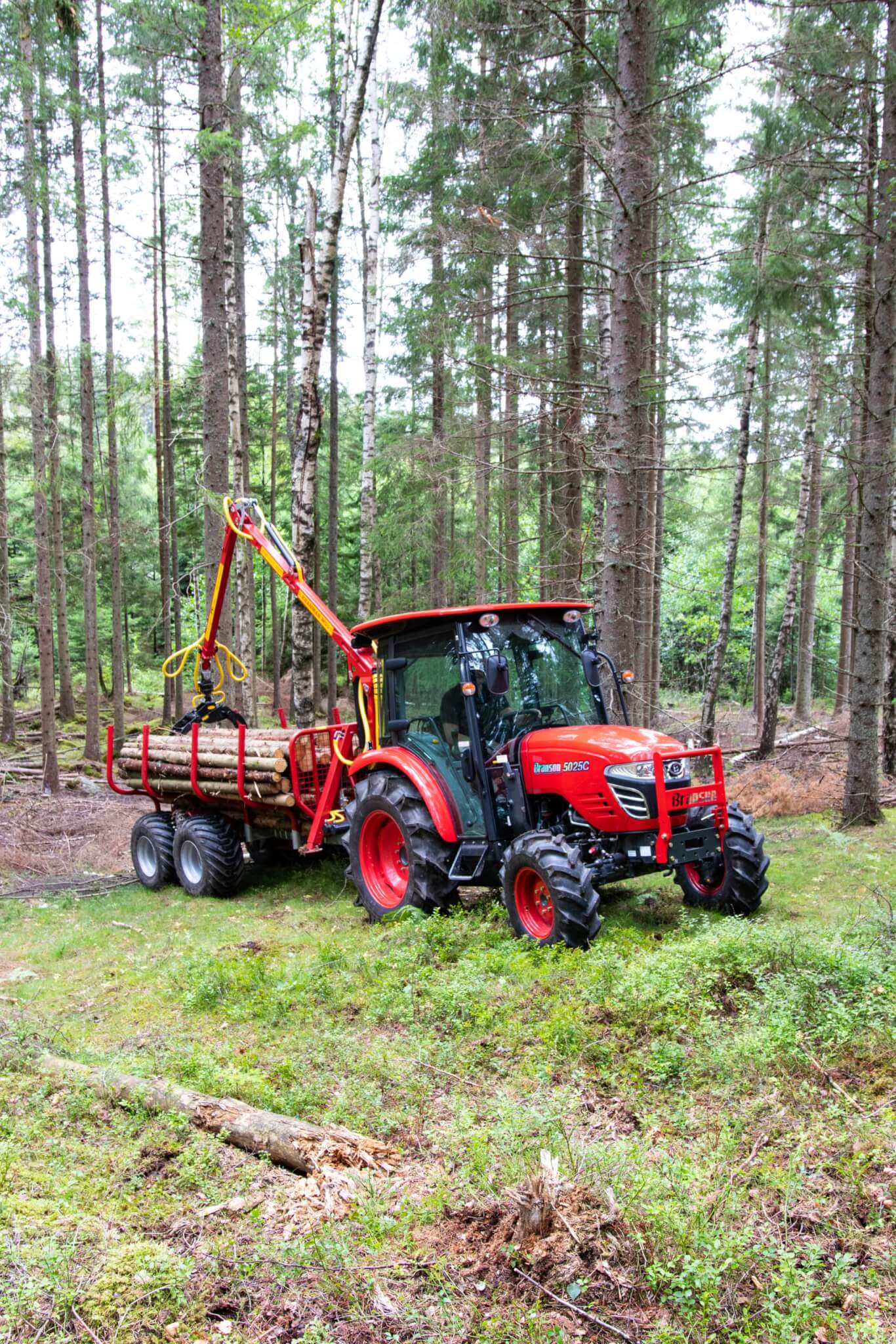

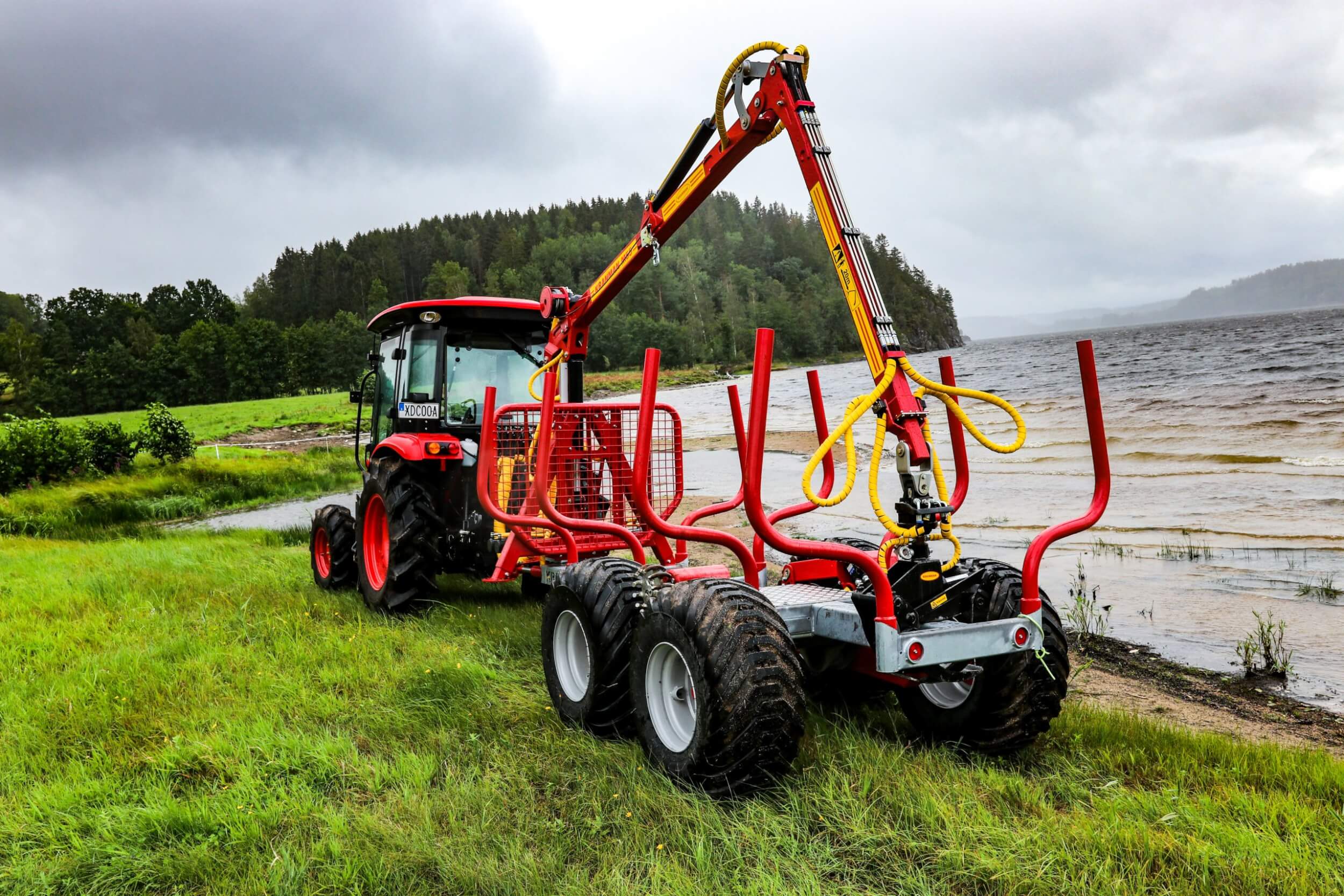

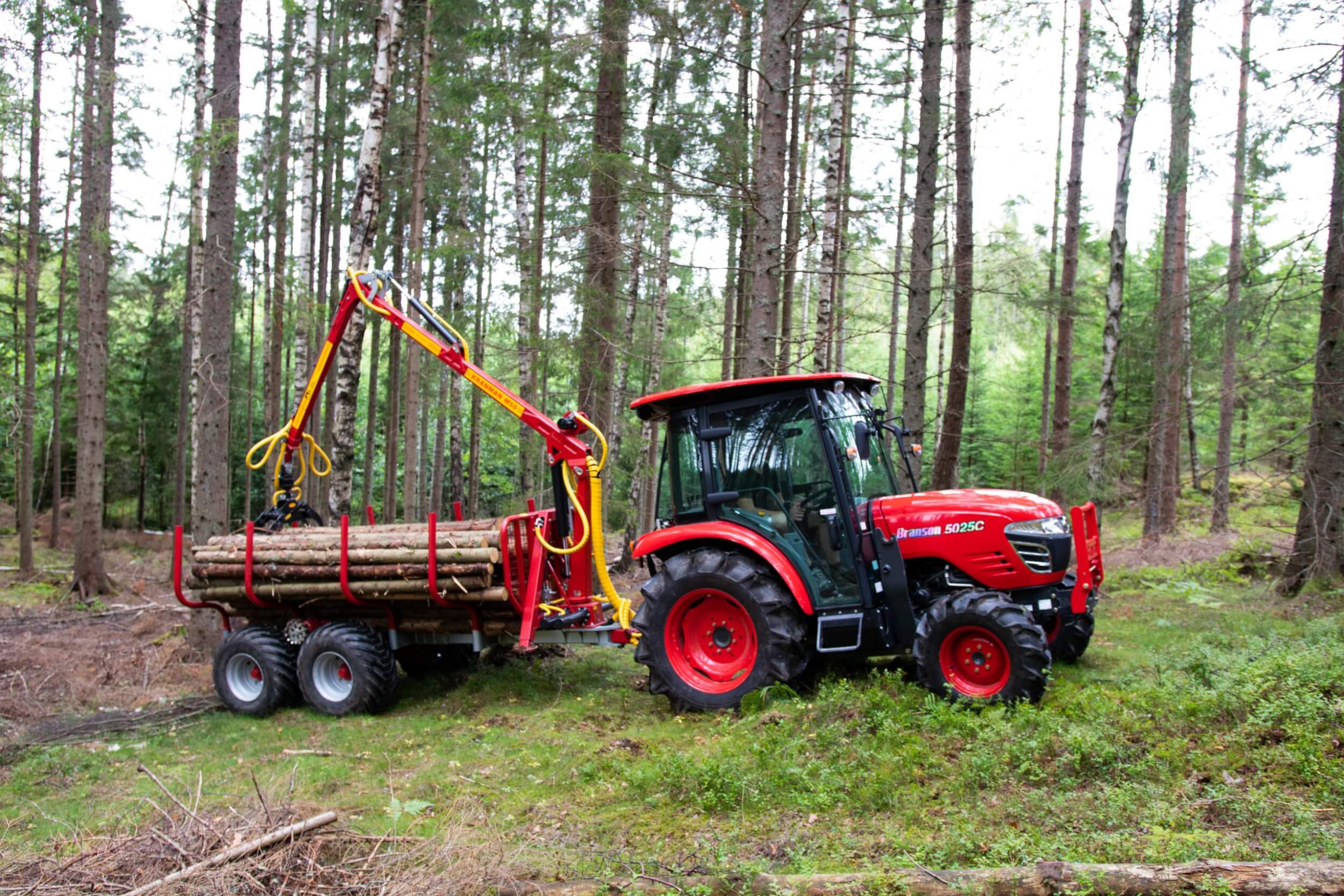

Kranman T5000EX is a heavy duty grappletrailer designed for smaller tractors between 40-60 hp. All T5000EX are prepared for installation of hydraulic operation, which also provides the possibility to retrofit this. The operation significantly increases accessibility.

The front and rear can be easily pulled apart and thus change the length of the load surface by 100 centimeters. This makes the trailer flexible to be able to handle a large variety of timber lengths.

The trailer is equipped as standard with the powerful crane M46, range 4.6 meters, which can be upgraded to the crane M56 which has a range of 5.6 m.

Kranman T5000ex poweredtrailer with 5.6 m long crane

Specification

Width180 cm
Total length450-550 cm
Cargo space length285-385 cm
Length from gate to center bogie170-270 cm
Loading area1,1
Weight trailer630 kg
Wheels400/60-15.5" 14 lager
Max load5,000 kg
DriveNo, hydraulic 4WD is available as an option
Load poles6 moveable and swivel (possible with an optional 8 pcs)
FaucetM46 (Optional M56)
Weight crane490 kg, incl. gate, support legs, grapple and valve package
Towbar50 mm loop
Frame control No, available as an option
Lifting force max M46390 kg
Lifting force 1.2 m1 450 kg
Grab loader T5000EX with M46 crane

Specification

Width180 cm
Total length450-550 cm
Cargo space length285-385 cm
Length from gate to center bogie170-270 cm
Loading area1,1
Weight trailer630 kg
Wheels400/60-15.5" 14 lager
Max load5,000 kg
DriveNo, hydraulic 4WD is available as an option
Load poles6 moveable and swivel (possible with an optional 8 pcs)
FaucetM46 (Optional M56)
Weight crane490 kg, incl. gate, support legs, grapple and valve package
Towbar50 mm loop
Frame control No, available as an option
Lifting force max M46390 kg
Lifting force 1.2 m1 450 kg

Optional accessories Grab loader T5000EX with M46 crane

Drive

Art. no DR5000

M56 crane with extension

Art. no KU100

Remote hydraulic winch HV1000

Art. no HV1000

Mechanical coordinated lever valve package

Art. no DCV-M

2-lever valve package Electricity on / off

Art. no DCV-E

Frame control

Art. no RS4500

Crane dampers

Art. no BK-KD

Extra load carriers T4600

Art. no ST4600

Hydraulic brake

Art. no BRT2

Pressure pack

Art. no KTS19

Accessories Grab loader T5000EX with M46 crane

Kranman Energy Clip 155E

Art. no 155E

G60L Grab

Art. no G60L

Ditch Bucket DS55

Art. no DS55

Quick release kit grab SGS5

Art. no SGS5

Storage box on the gate

Art. no BK-F3
VAT not included in prices.
