Kranman processor P25 is a durable thinning processor with well-proven solutions for the most efficient thinning in terms of soil damage, fuel consumption, personal workload and not least the final result. Processor P25V is our processor in trailer design. The same flow and reprocessing rate are maintained, but in this form processor is not positioned from the control panel. This is done from the machine on which the processor is mounted. The processor has its own hydraulic system, which means that nothing needs to be connected to the machine on which the processor is applied. Maximum 60 cm mounting height. The wagon-style processor is powered by a Honda GX630 petrol engine. • The processor has a specially adapted 2-pump system which means that it is not sold without a motor and pump. Processor P25 for trolley comes with relief legs that allow for easy off/unloading of the processor.

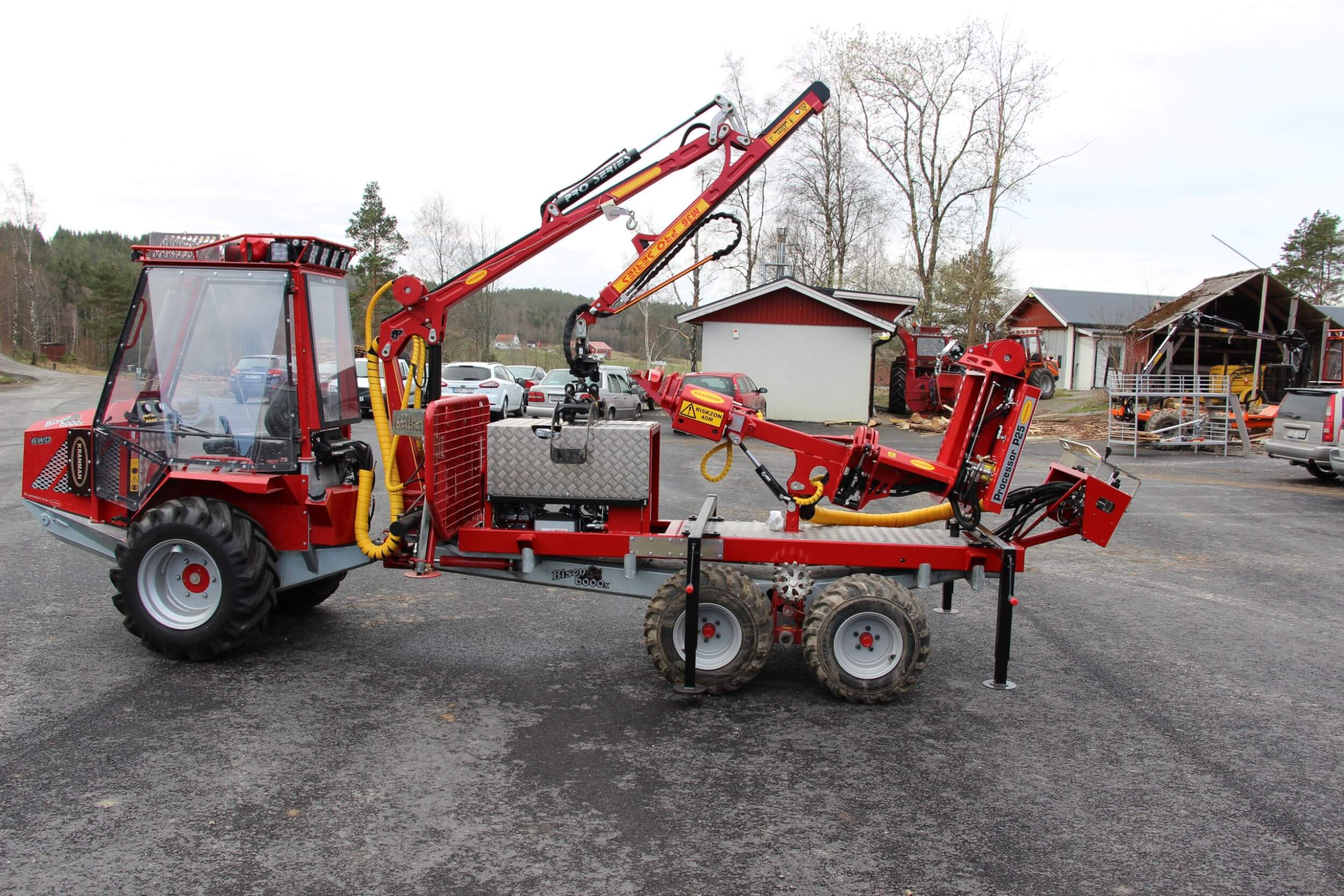

Kranman Processor for trailer on Bison 8000

Specification

Stroke length1 020 mm
Maximum tree size250 mm
Operating Pressure Hydraulics160+170 bar
Oil flow60+20 l/min
Saw bar15 inch
Weight Processor425 kg
Weight complete with petrol engine575 kg
Press power delimbing3,1 tons
Diameter winch line6 mm
Max thrust winch1 000 kg
Average rate of step feeders0.75 m/sec
Engine power gasoline15.5 kw
Length bottom frame295 cm
Total height120 cm
Total width58 cm
Total length360 cm
