Crane M56

Art. no M56

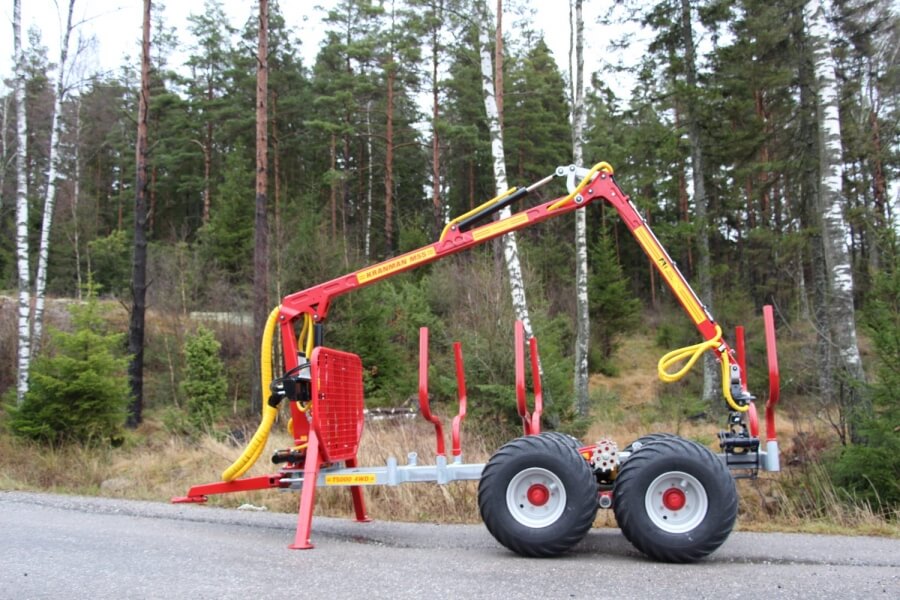

Crane M56

Kranman M56 is a light and flexible crane. The price includes the grapple, rotator and 6-lever valve package. Gate and support legs are added to the price.

Specification

Length5.5 m
System pressure180 bar
Gripper0,12
Weight crane with support leg and gate535 kg
Lifting force (at m) including grapple and rotator1450 kg (1.2 m) 600 Kg (3.0 m) 420 kg (4.2 m) 390 kg (4.5 m) 210 kg (5.65 m)
Recommended oil flow20-35 l/m
Crane M56

Specification

Length5.5 m
System pressure180 bar
Gripper0,12
Weight crane with support leg and gate535 kg
Lifting force (at m) including grapple and rotator1450 kg (1.2 m) 600 Kg (3.0 m) 420 kg (4.2 m) 390 kg (4.5 m) 210 kg (5.65 m)
Recommended oil flow20-35 l/m

Optional accessories Crane M56

Mechanical coordinated lever valve package

Art. no DCV-M

2-lever valve package Electricity on / off

Art. no DCV-E

A-frame with gate and support leg

Art. no ARSB46

Accessories Crane M56

Ditch Bucket DS55

Art. no DS55

Crane plate M46/M56

Art. no KP-1

Quick release kit grab SGS5

Art. no SGS5

Hydraulic power unit 21 l/min

Art. no KS-791
VAT not included in prices.
