The T1710 is a smooth and light trailer for those who want a quality trailer and are not in need of such a strong drive, are content with less
wheels and a simpler crane compared to the T1750.

The T1710 is based on a center beam design and can be manually adjusted by 60 cm. The crane and drive of the vehicle are powered by a Honda GX200 engine. Options available include the 30-60 crane of 4.4 m, frame control via the unit and radio-controlled winch. The brake valve is activated automatically when you brake with the ATV. Of course, our gravel trailers, grabs and rice bodies fit the trailer and are suitable for use all year round.

Standard equipment:

  • Wheels 22×11.00-8 6 layer

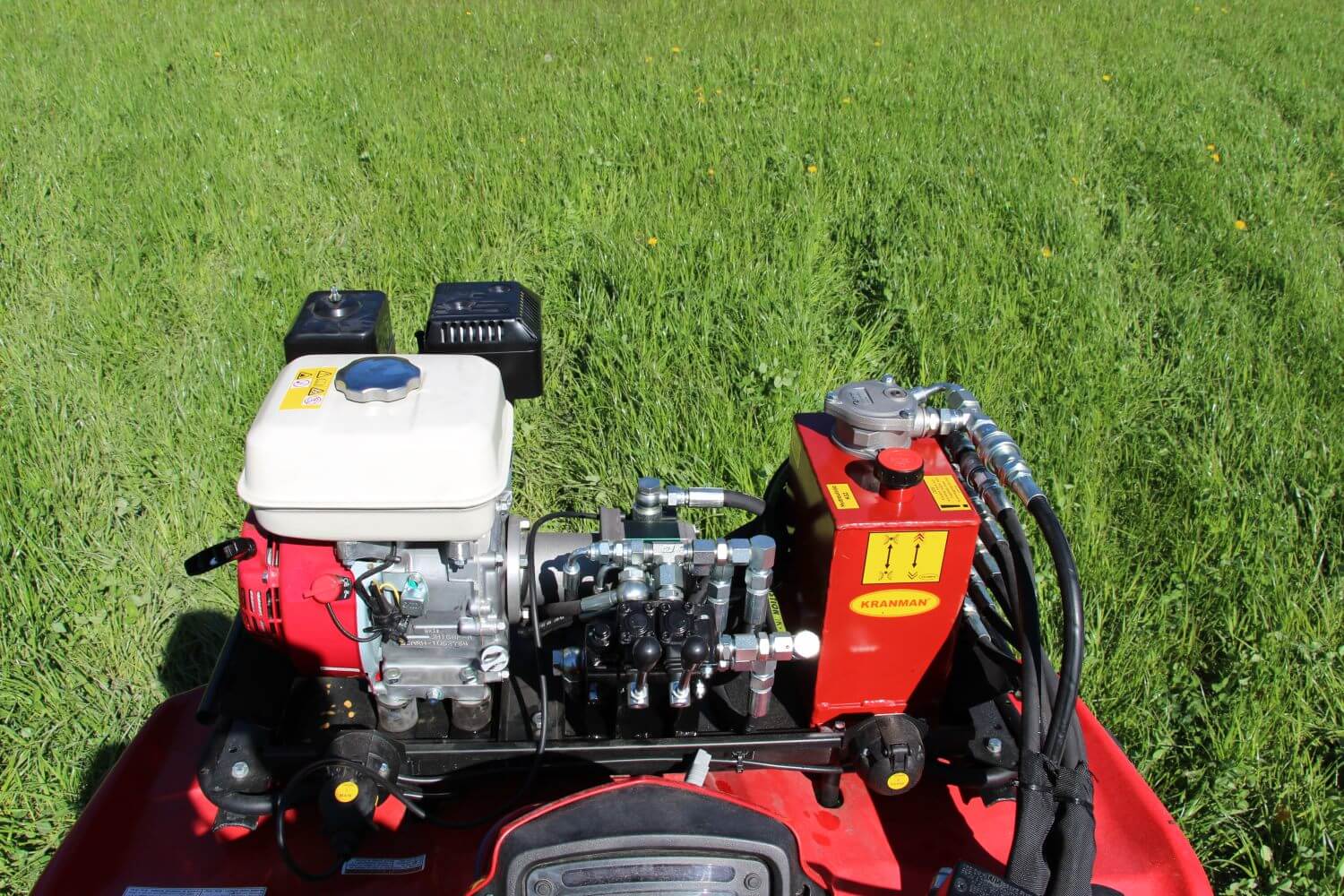

  • Hydraulic power unit with Honda GX200
  • Free connection of the drive when braking with ATV
  • 30-40 crane 3.4 m

Specification

Width 135 cm
Height over gate165 cm
Length between banks:226-286 cm
Minimum length between banks:168 cm
Loading area0,9m²
Weight (trailer without crane)292 kg
Total length382-442 cm
Load supports4-6 rotatable
Frame controlAvailable as option
Wheels22x11-8" 6 layer
ChassiVRK 100x100
FaucetK30-40 3.4 m
Weight crane256 kg incl. crane, support leg, grapple and rotator
Clearance 40 cm
Clearance crane foot40 cm
Clearance under bogie26 cm
Max load1700 kg
