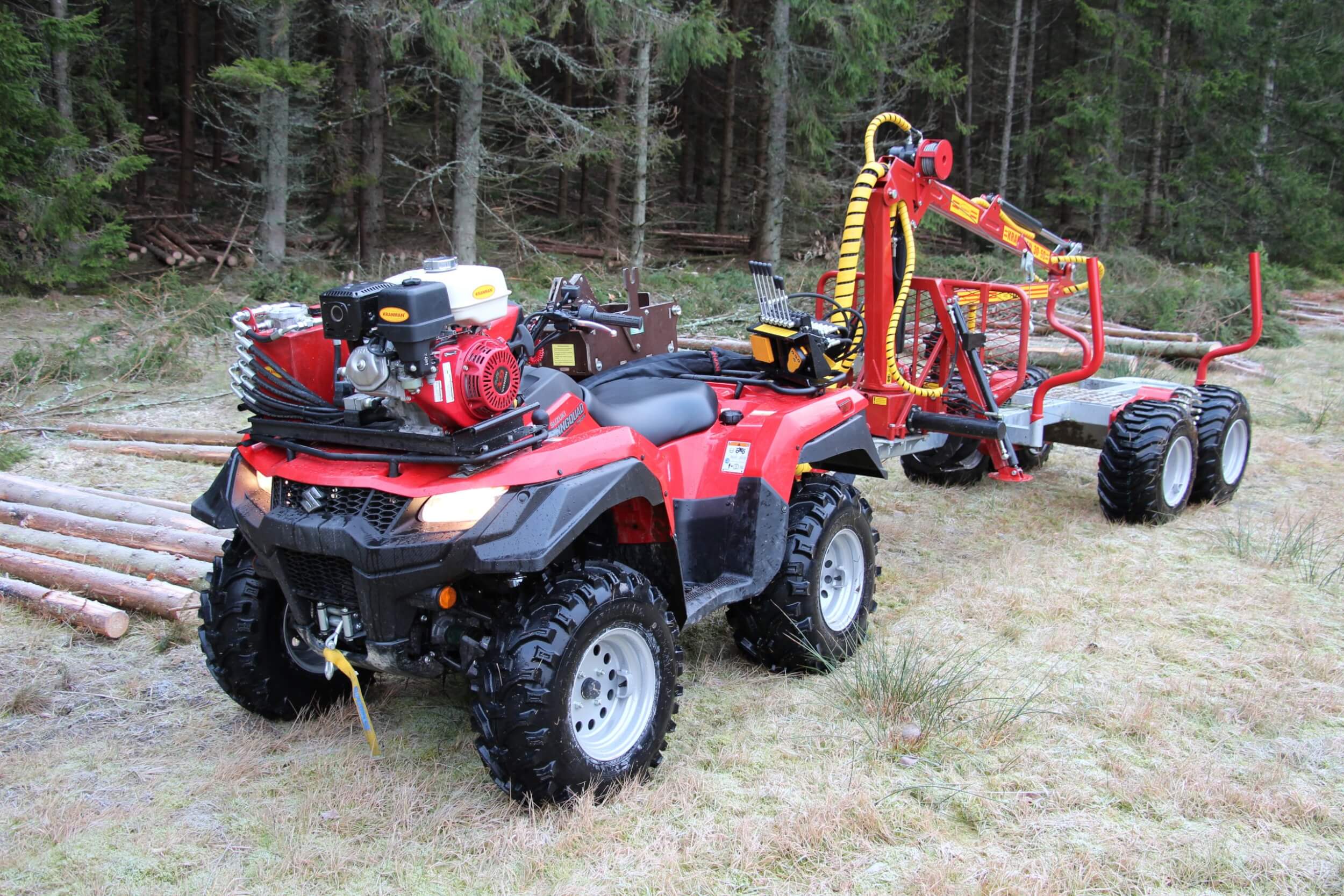

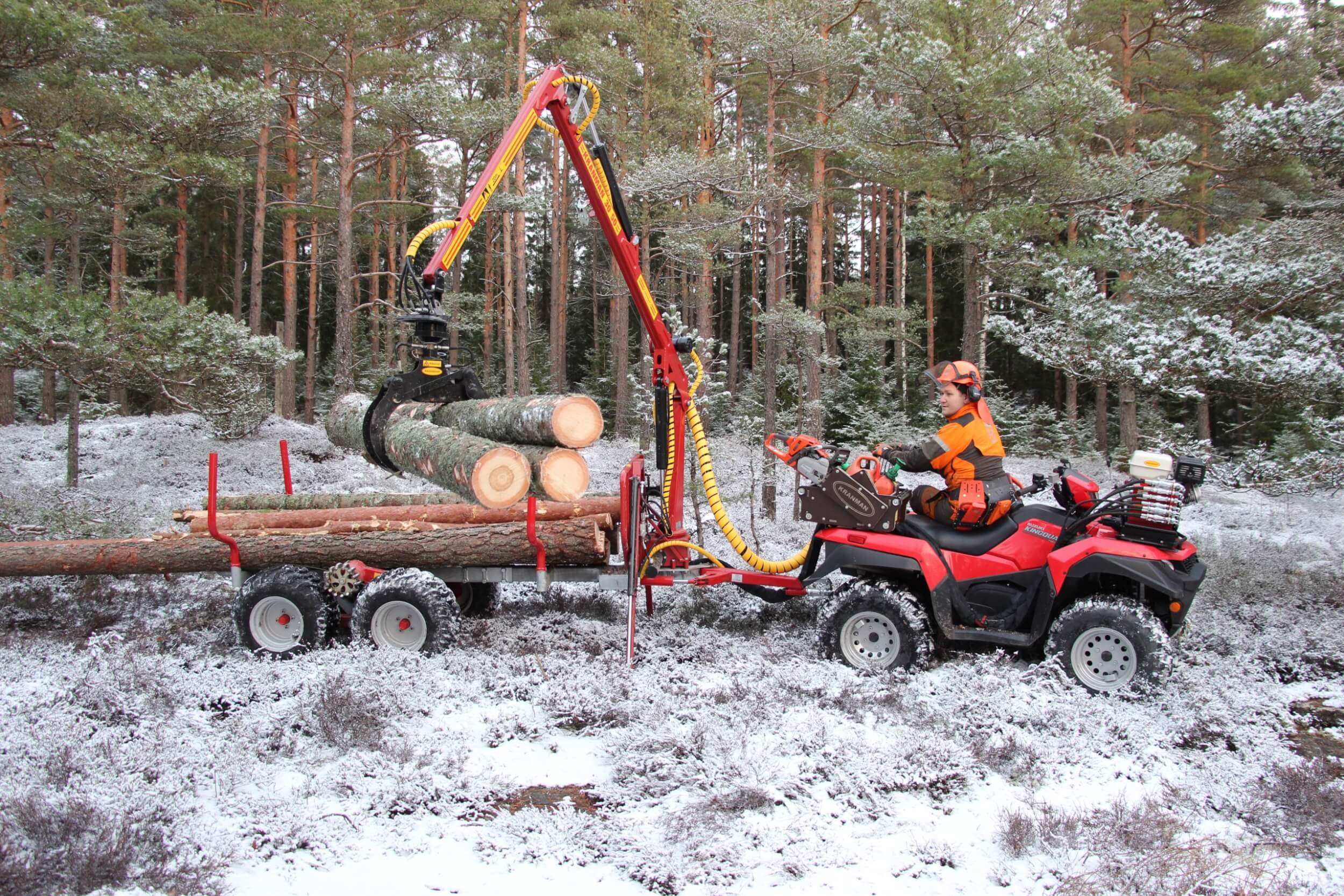

T1750 is a powerful ATV trailer with drive. The trailer is built with a center beam design 90 * 90 * 4 (100 * 100 * 3). The length of the carriage can be changed with 58 cm, from 158cm to 216 cm between the banks With the optional double pump, 2 different speeds of the drive can be achieved. The vehicle is powered by a powerful Honda GX270 engine. The cylinders and hoses to the drive roller are well protected on the bogie. The trailer has a disconnection valve for the drive. As soon as you brake with the ATV, the trailer will also stop. Brake valve is optional for the trailer. Then you can adjust the braking action on the trailer so that it does not push on the ATV in slopes. The brake valve is activated automatically when you brake with the ATV. Kranman has developed its own wheels that are adapted to drive roller. The wheels have extra strong patterns and a tread molded for maximum grip and minimal friction (Kranman-wheels are optional) Standard equipment:

  • 30-50 crane with comfort joint 3.5 m
  • Wheel 300/65-12" 8 bearings

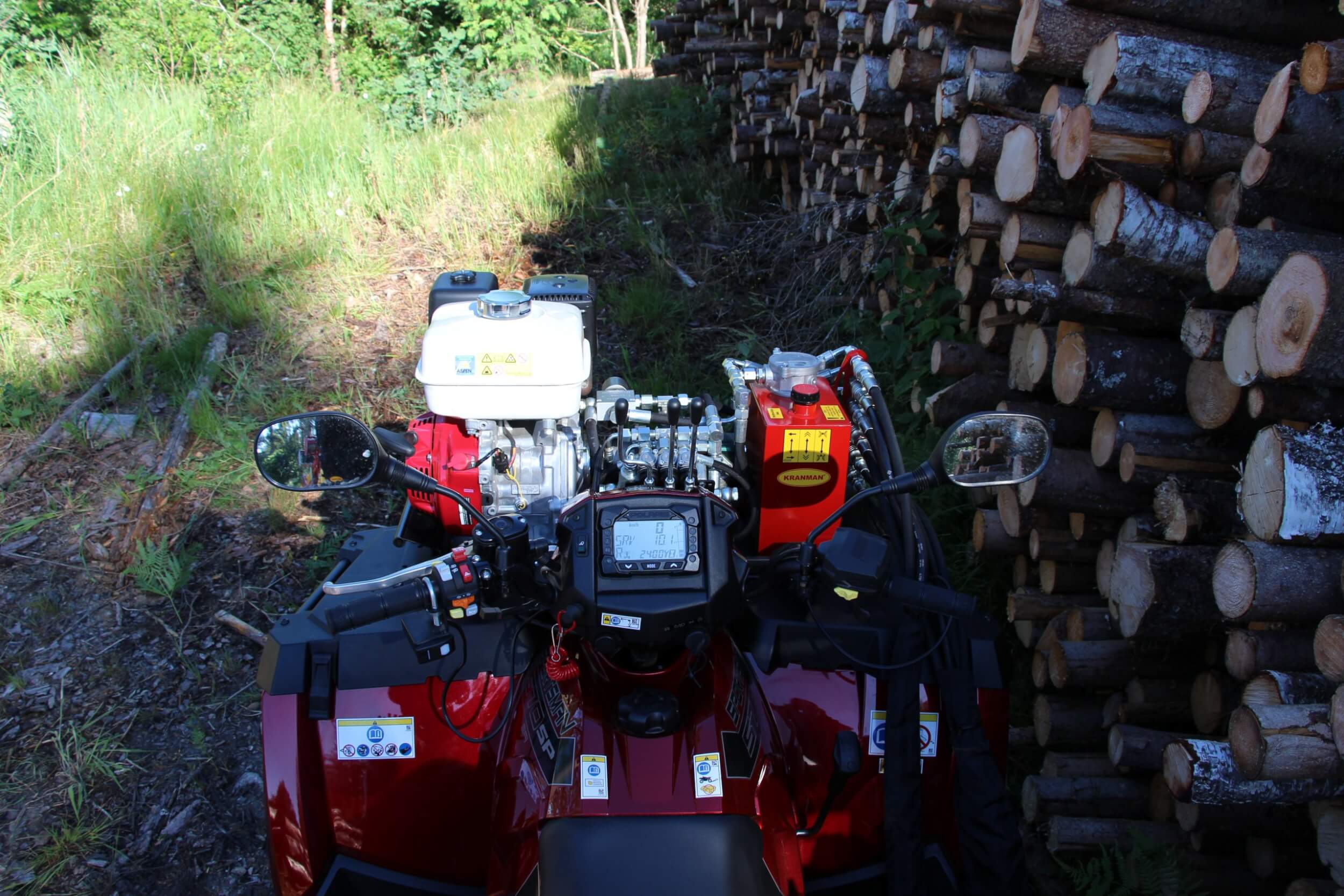

  • Hydraulic power unit with Honda GX270
  • Free connection of the drive when braking with ATV

Review of everything you need to know about kranman T1750 ATV grapple loader wagon!

Kranman T1750 How to drive a ATV-trailer

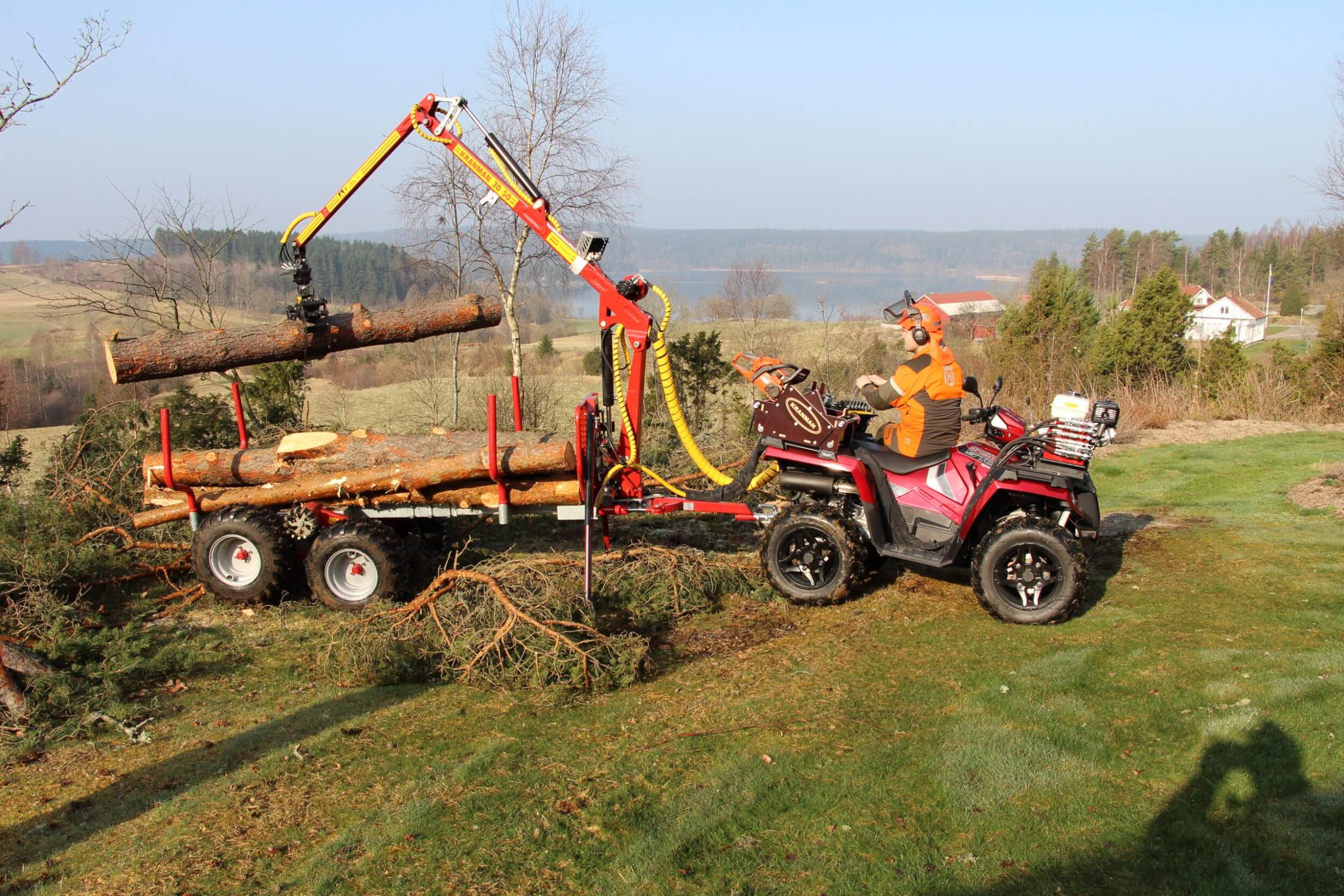

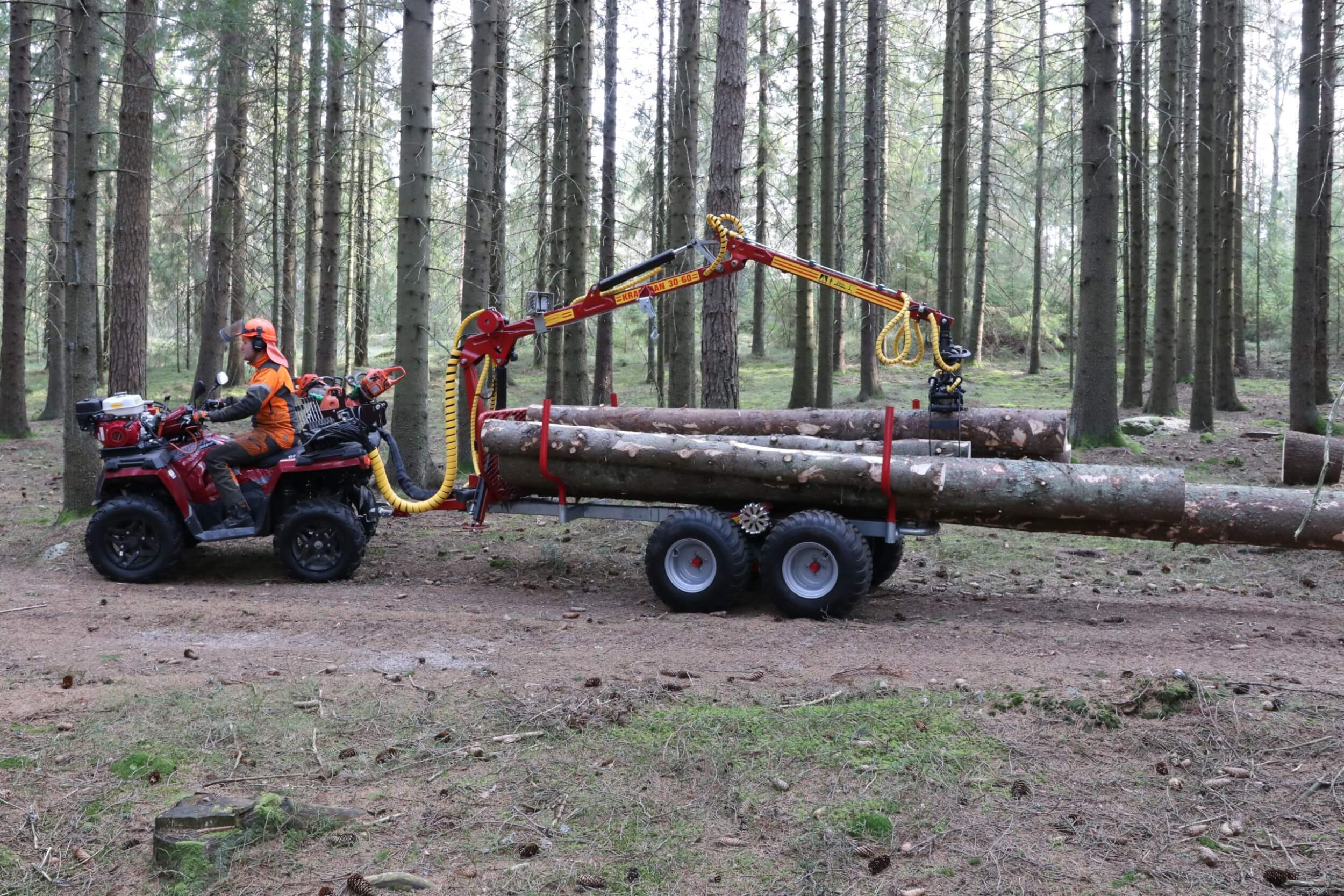

Crane man T1750 with polar ice 570 takes care of trap.

Winches wind traps that have hung themselves with Kranman T1750

Specification

Width142 cm
Height over gate165 cm
Length between banks:226-286
Minimum length between banks:168 cm
Loading area0.9 m²
Weight (trailer without crane)360 kg
Total length382-442 cm
Load supports4-6 rotatable
Frame controlAvailable as option
Wheels300/65-12" 8 ply
ChassiVRK 100x100
FaucetK30-50 3.5 m
Weight crane276 kg (including support leg, gate, valve package & grapple)
Clearance40 cm
Clearance crane foot40 cm
Clearance under trailer in the middle below30 cm
Max load1 750 kg
