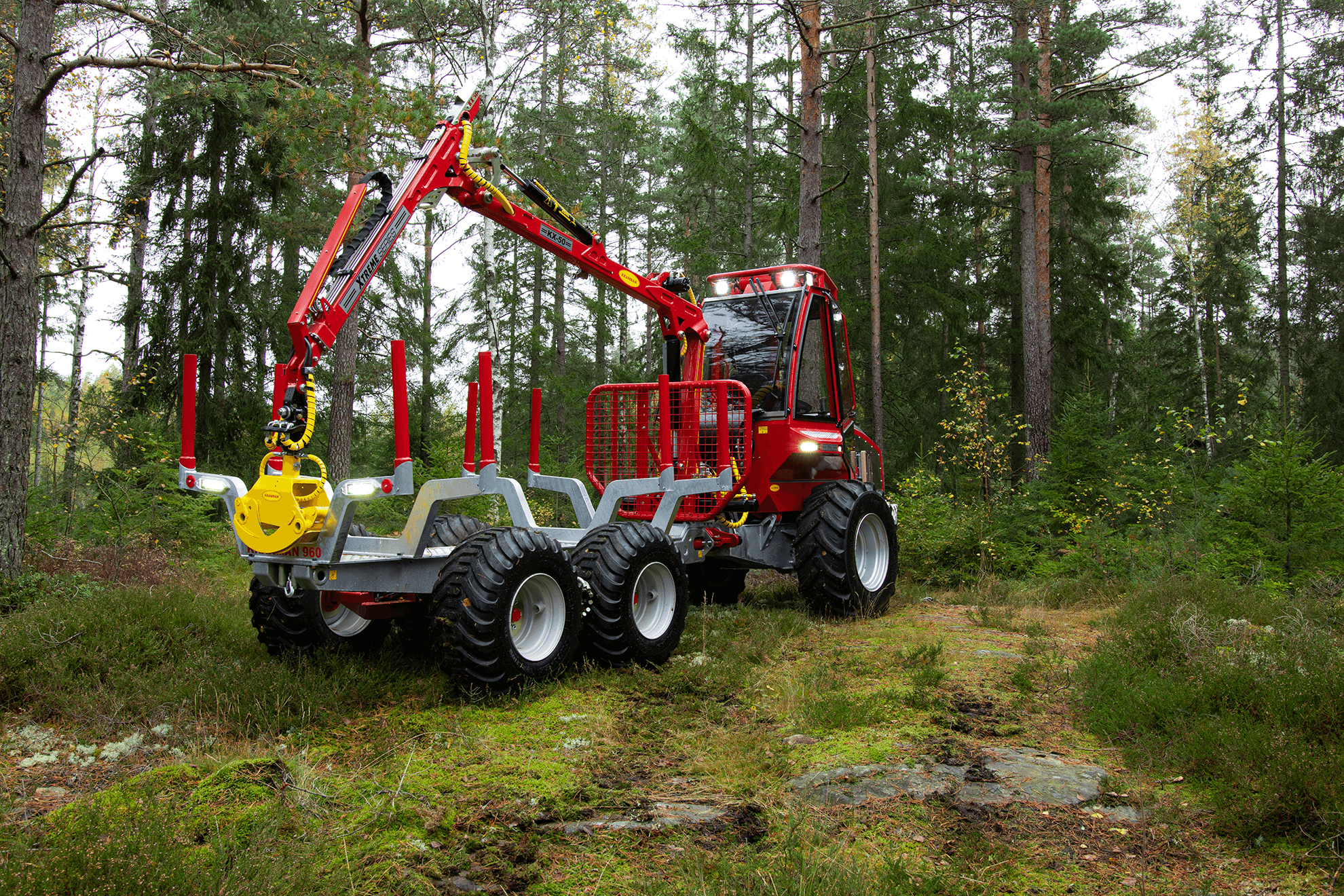

Kranman 960

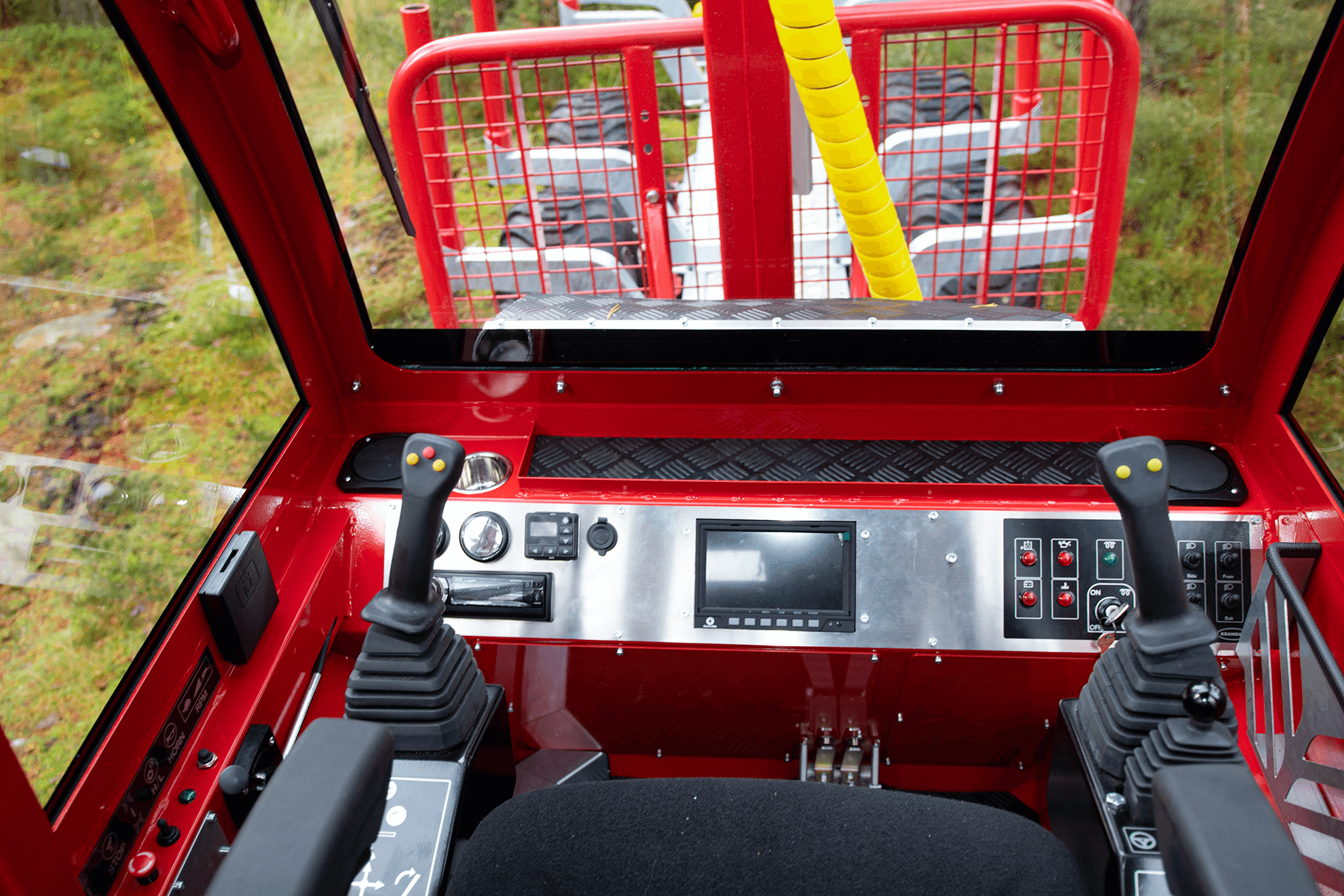

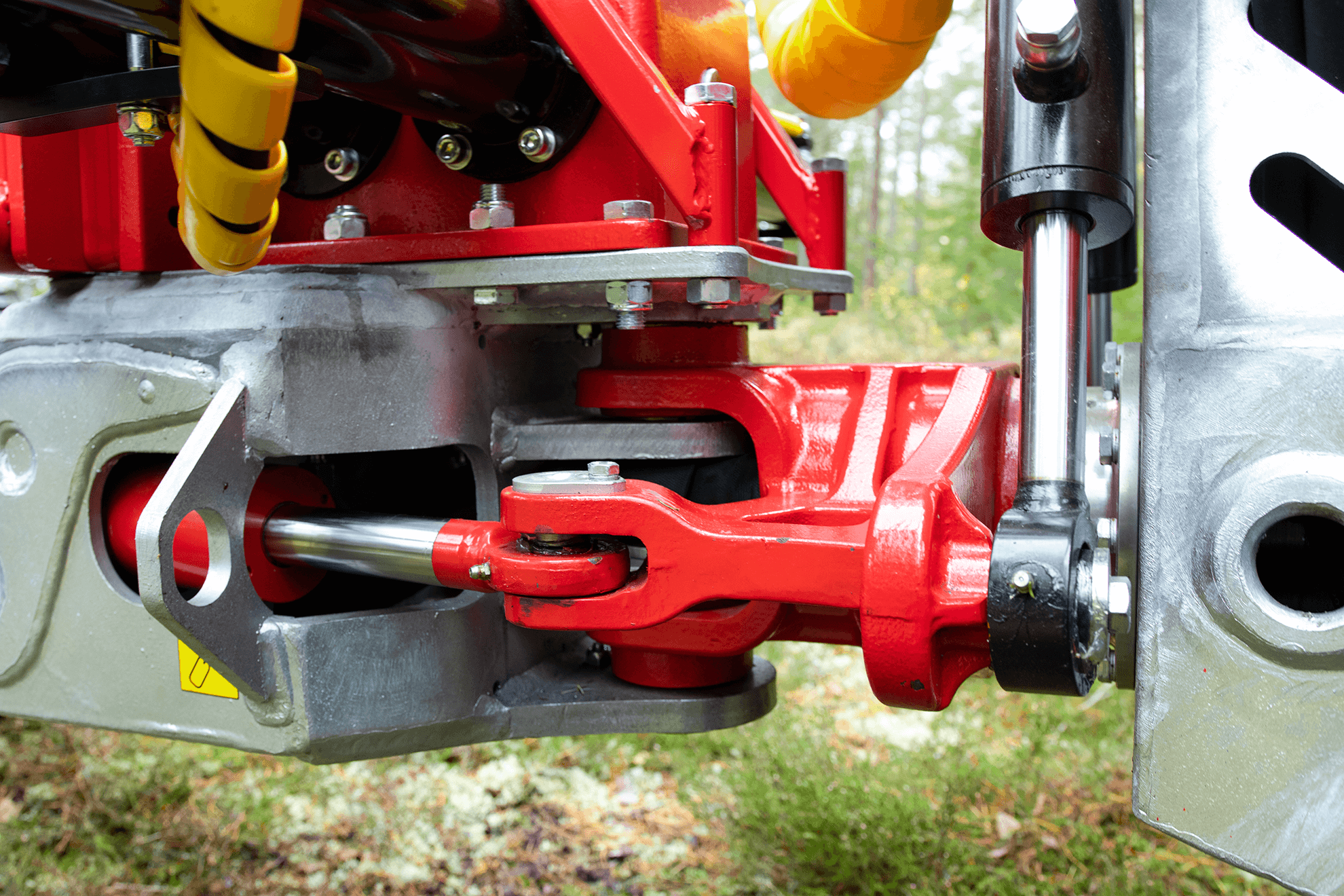

With this machine, we move the level further in the segment and we are incredibly proud of the result. It’s more powerful than ever with a four-cylinder 1.5-litre diesel engine from Kubota. The engine has a high torque. This, combined with a more powerful drivetrain and the large wheels, gives the machine extreme off-road capability. The drivetrain consists of a double rental thermostat in which one pump goes to the front wheels and one goes to the rear wheels, as well as a gear pump for crane and steering. The machine has 6-wheel drive in high and low gear. On the transport gear, it is front-wheel drive. A machine in this class requires an automatic waist lock. This, together with our automatic parking brake, makes the machine even more efficient. Waist lock and parking brake are activated when you release the driving pedal. Kranman 960 has a heavy-duty molded waist with well-protective waist lock cylinders and integrated steering cylinders in the reartrailerone. Most of the development work we have put on the cab. The cab is rubber suspended and foldable with double cabin floors and three insulated torpedo walls facing the engine compartment. This means that we get a noise level of a very low 76 db at full engine speed. That’s far below the requirements for hearing protection and arguably class-leading. Thanks to the spacious cab and the curved window, you get a very good all-round view. The very comfortable seat is air-cushioned in height and also cushioned. With the servo levers located in the armrests, you control both the crane and the machine’s control. The servo hydraulics make the crane easy to operate with precise precision and high reliability. Both AC and app-controlled diesel heaters are found in the various equipment packages. The storage options are very well sized and cleverly placed. With powerful cross-directional LED lights, shadow formation is minimized and an even pleasant light image is created. On Kranman 960 sits our completely newly developed crane KX50 Extreme series. The crane is developed with a focus on strength and optimized movement pattern. Thanks to our 4-point comfort joint and fast protrusion, forwarding becomes efficient and easy. Of course, our most powerful winch HV1000 is mounted. The machine is supplied with swivel stakes or forwarder bunks. Regardless of the choice, the bunks are movable in a total of 15 different steps, which means great flexibility.

Efficient windfall handling with Kranman P25 and Kranman 960

Kranman 960 mini forwarder drives in 40 cm of snow

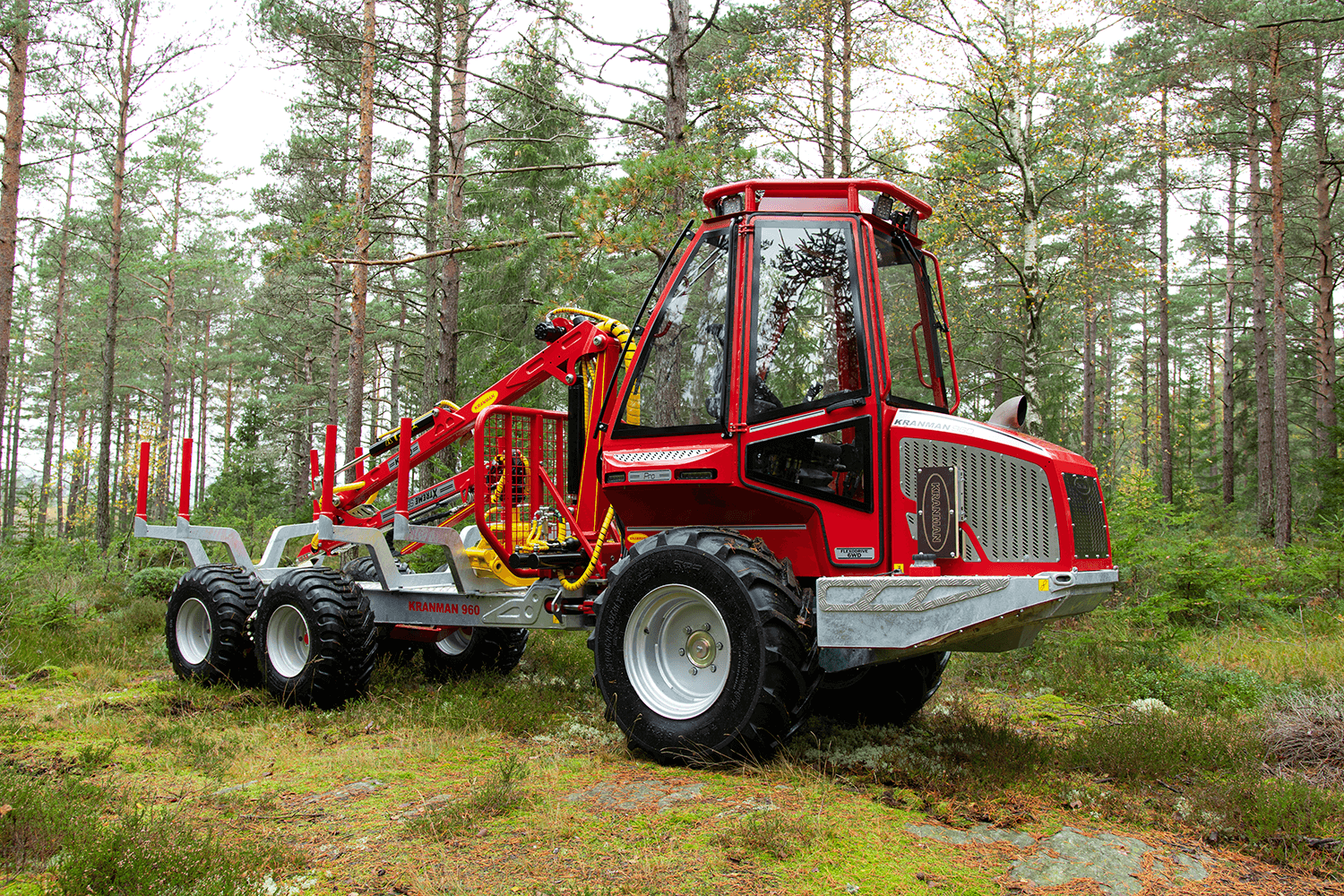

Kranman 960 mini forwarder drives in the forest

Kranman 960 - review of the entire mini forwarder

Kranman 960 forwarder - almost endless storage possibilities

Specification


Engine model:
EngineKubota 1505 diesel 24.8hp, 4 cylinders
Environmental classStep V
Max work lap2,300rpm.
Transmission, power transmissionHydrostat
Torque93Nm

Braking system:
Hydraulic vane brakes
ForwardHydraulic vane brakes
BehindHydraulic vane brakes

Electrical system:
12V
Volt12V
Battery80Ah
Generator40A, in our pro plus model we use 60A
Lighting LED1st 10W, 4th 30W, 6s 15W

Specifications:
6km/h
Top speed standard:6km/h
Transport gear10km/h
Max load3500kg
Front wheels405/70R20
Rear wheels400/60-15.5
Fule tank32L
Fuel consumption2.5L/h
Ground clearance35cm
Loading area1.2m²
Weight2700kg

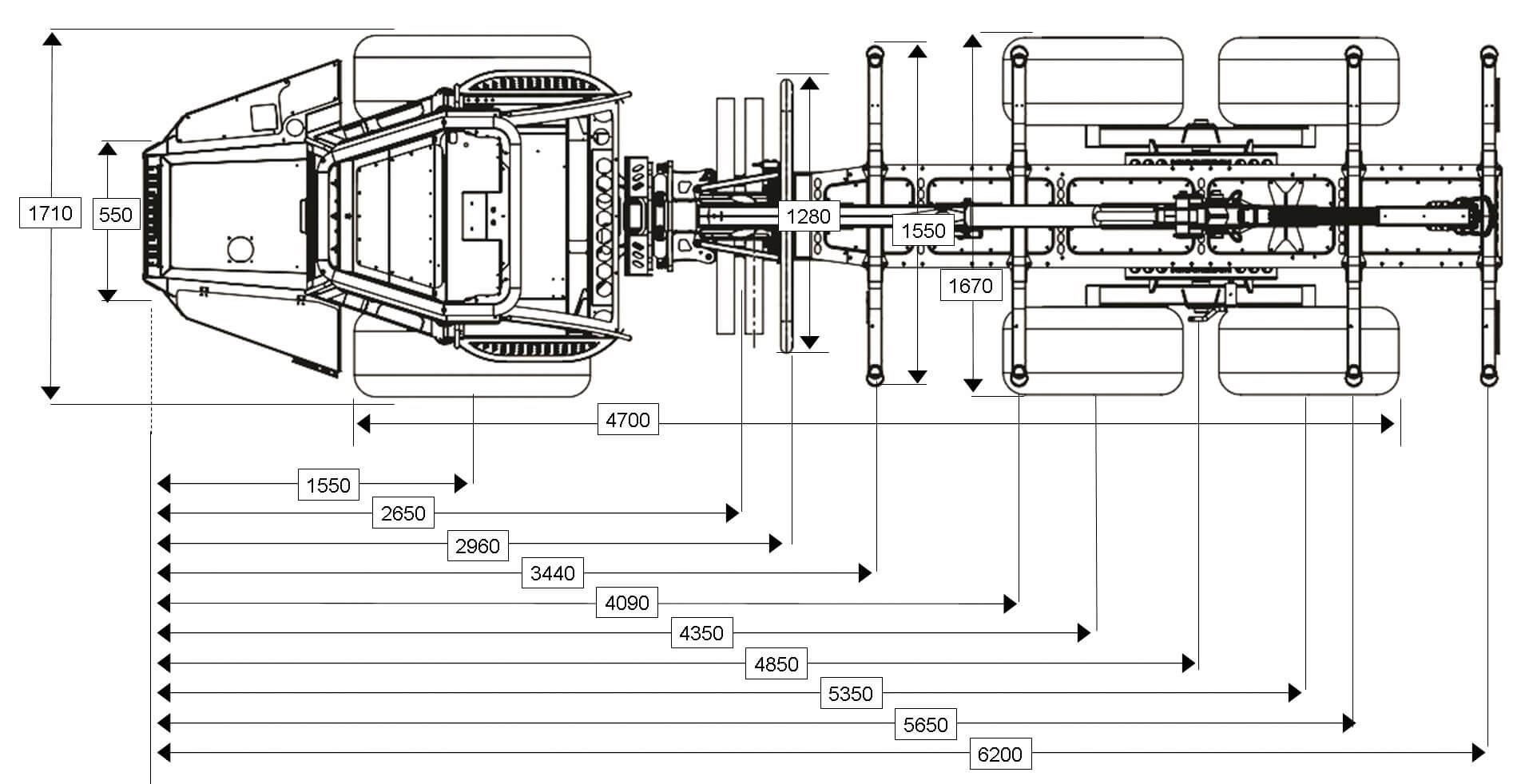

Dimensions LxWxH620x168x258
Crane:
Range 5.05m
Lifting force (1.2m)1450kg
Lifting force (3.0m)600kg
Lifting force (4.2m)420kg
Lifting force (4.5m)390kg
Lifting force (5.0m)290kg
Gripper0,12
Oil pressure200 bar
Extend1 m

Specification


Engine model:
EngineKubota 1505 diesel 24.8hp, 4 cylinders
Environmental classStep V
Max work lap2,300rpm.
Transmission, power transmissionHydrostat
Torque93Nm

Braking system:
Hydraulic vane brakes
ForwardHydraulic vane brakes
BehindHydraulic vane brakes

Electrical system:
12V
Volt12V
Battery80Ah
Generator40A, in our pro plus model we use 60A
Lighting LED1st 10W, 4th 30W, 6s 15W

Specifications:
6km/h
Top speed standard:6km/h
Transport gear10km/h
Max load3500kg
Front wheels405/70R20
Rear wheels400/60-15.5
Fule tank32L
Fuel consumption2.5L/h
Ground clearance35cm
Loading area1.2m²
Weight2700kg
Dimensions LxWxH620x168x258
Crane:
Range 5.05m
Lifting force (1.2m)1450kg
Lifting force (3.0m)600kg
Lifting force (4.2m)420kg
Lifting force (4.5m)390kg
Lifting force (5.0m)290kg
Gripper0,12
Oil pressure200 bar
Extend1 m

Compare our bundles - what is included?

Comfort Pro Pro Plus
  • Rubber suspended cab
x x x
  • Selectable with forwarder banks or swivel rods
x x x
  • Double Command
x x x
  • Kubota 1505V motor
x x x
  • Servo levers in the armrests
x x x
  • Molded waist with integrated waist clasp
x x x
  • Automatic parking brake
x x x
  • Storage basket in torpedo wall for 2x1.5L bottle/thermos
x x x
  • Storage for binder in cab
x x x
  • Removable banks in 15 steps
x x x
  • USB socket
x x x
  • Storage compartments on screen
x x x
  • Double arm wipers
x x x
  • Rear dual arm wipers at intervals
x x x
  • Radio with bluetooth
x x x
  • Transport gear
x x x
  • High and Low gear on 6wheel drive
x x x
  • Button to high gear in the crane lever
x x x
  • Radio controlled crane winch HV1000
x x x
  • Lighting in cab screen 4x30W
x x x
  • Lighting on ceilings 6x15W
x x x
  • Lighting faucet tip 1x10W
x x x
  • Extra sound attenuation in cab
x x x
  • Fuel gauge
x x x
  • 2 saw holder on hood
x x x
  • Dunk holder combi dunk at gate
x x x
  • Footsteps toolbox
x x x
  • Clothes hook in cab
x x x
  • Chopper helmet attachment in cab
x x x
  • Storage compartments in doors
x x x
  • Grease sprayer holder
x x x
  • Cup holder
x x x
  • Ventilation locking in doors
x x x
  • Hydraulic jack for tipper flak
x x x
  • Indoor lighting LED
x x x
  • Tuta
x x x
  • Air-dampened chair
x x x
  • Chair heating
x x x
  • Plane cushioning in chair
x x x
  • Stainless steel exhaust system
x x x
  • Kranman KX50 extreme series crane 5.05m
x x x
  • Radial tires at the front for optimal comfort
x x x
  • Buzz and tow loops front, middle and rear
x x x
  • Folding cab for ease of service
x x x
  • Integrated control cylinders
x x x
  • Branch deflectors, interchangeable
x x x
  • Swing damper rotator link
x x x
  • 3 banks of 6 rods
x
  • 4 banks with 8 rods
x x
  • 230W engine heater
x
  • Camera forward
x x
  • Diesel heater
x x
  • Lighting stakes rear 2x30W
x x
  • Crane dampers with accumulators
x x
  • Salvage winch at the back of trailerone
x x
  • AC
x
VAT not included in prices.
