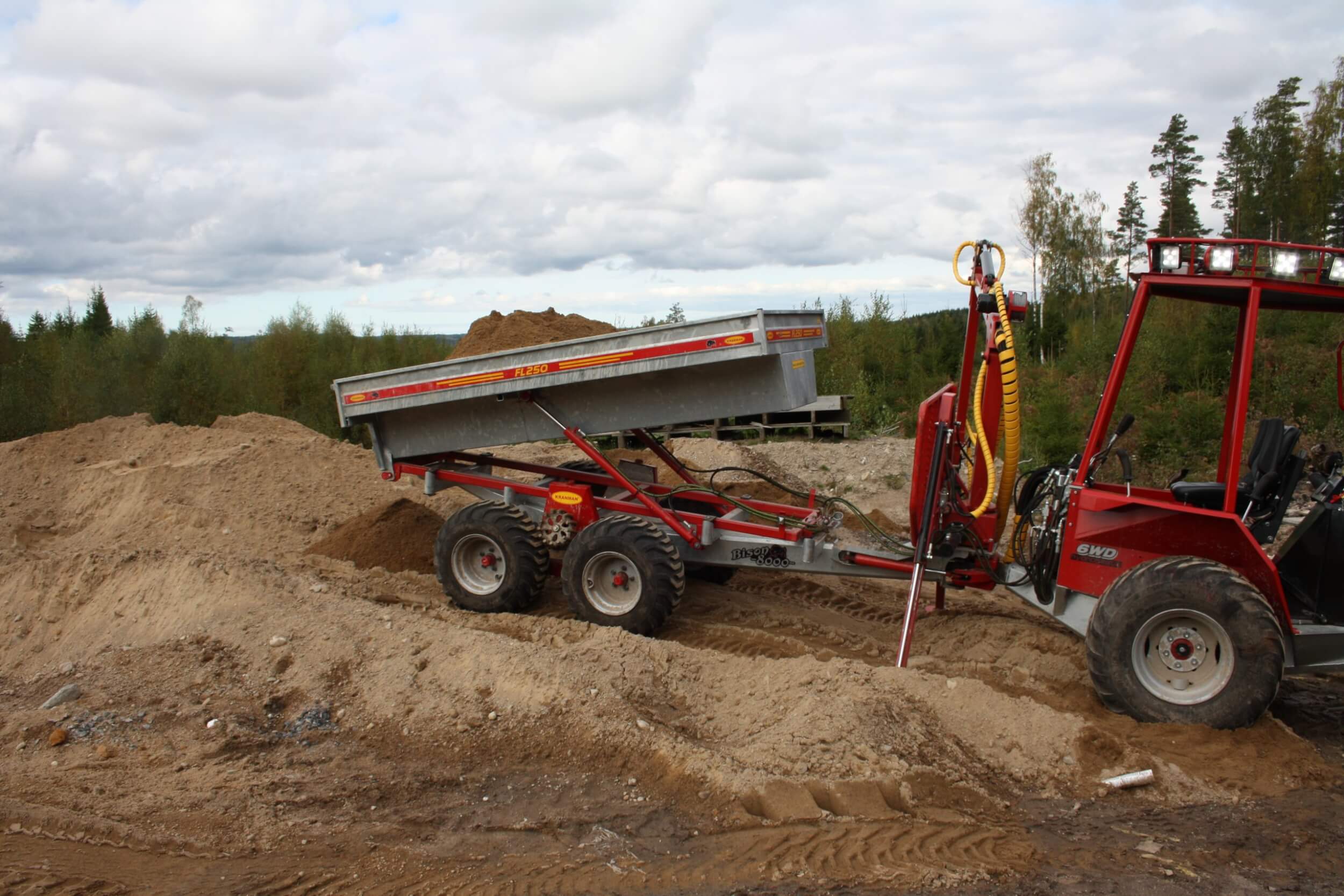

Dump truck bed FL350 flatbed turns your Bison into a dump truck.

The tipper body is a further development of our ATV trailer FL400. Tipper body mounted on a frame with dual tilt cylinders which together makes power available where it is needed. The body is operated with the additional hydraulic jack on the Bison mini forwarder. Transporting sand goes nearly as smoothly as with chips. Mounting is by means of 4 quick fasteners. attachments are not included. This is a separate article, depending on the model of the Bison. To facilitate lifting with the crane, our lifting bracket LB110 is available. If the crane is supplemented with a grab bucket or ditch bucket, the tipper is fully loaded in a few minutes.

Specification

Length2 500 mm
Width top1 120 mm
Height top270 mm
Width bottom560 mm
Height bottom330 mm
Max load1 200 kg
Weight170 kg
OtherThe entire platform is hot-dip galvanized

Specification

Length2 500 mm
Width top1 120 mm
Height top270 mm
Width bottom560 mm
Height bottom330 mm
Max load1 200 kg
Weight170 kg
OtherThe entire platform is hot-dip galvanized
VAT not included in prices.
