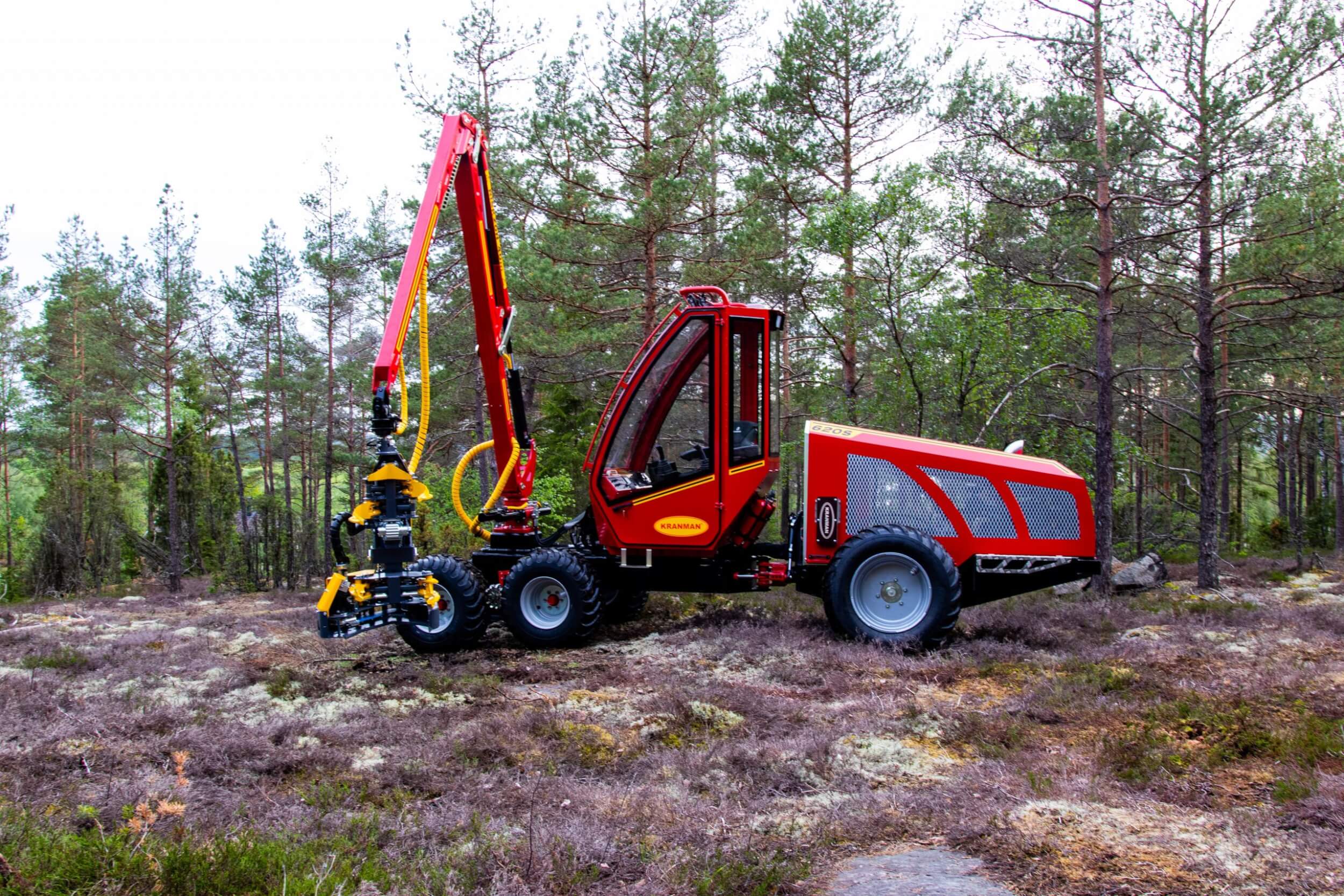

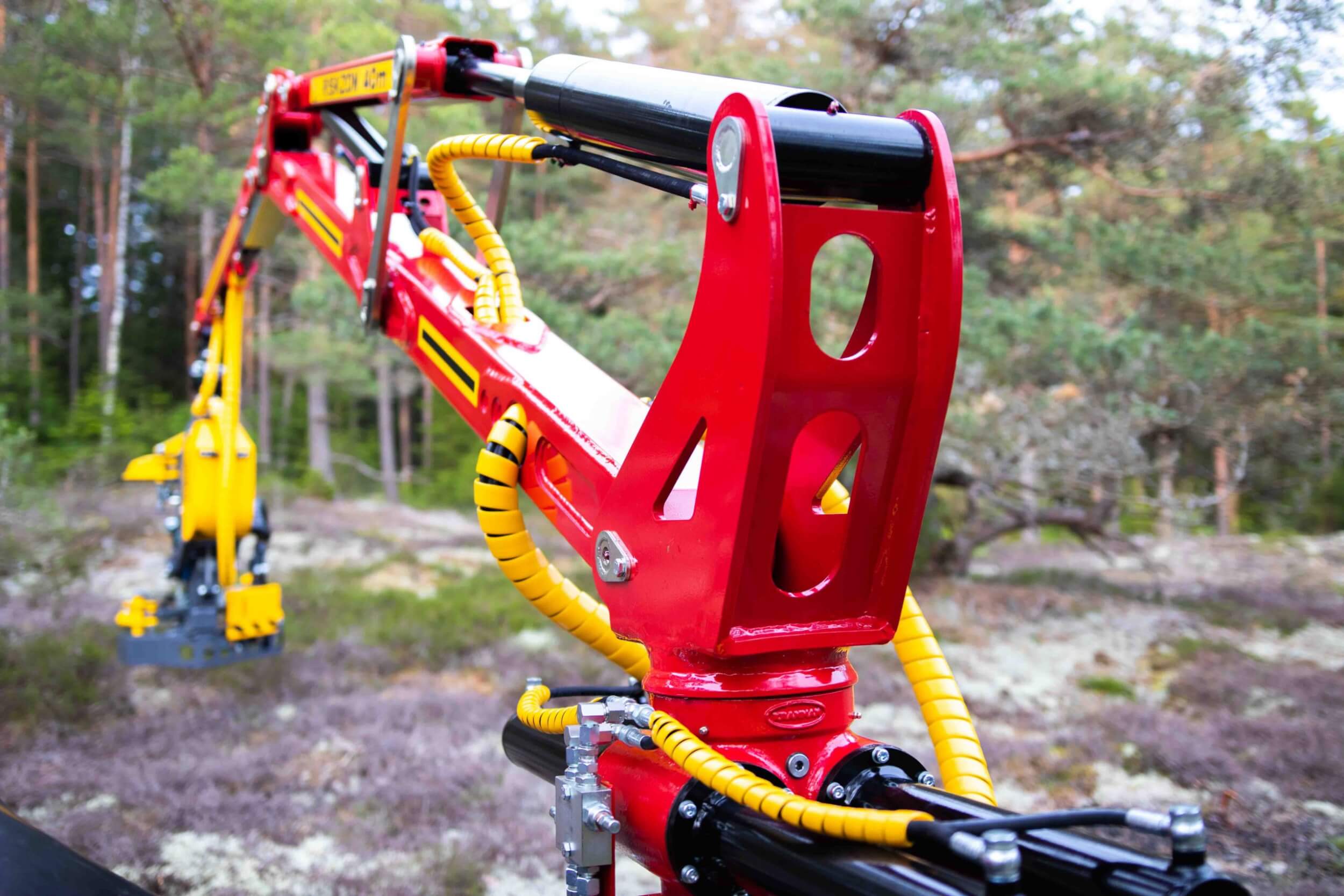

The largest and most equipped of our harvesters, this plus model we have in addition to the 620s pro added additional equipment such as AC and stub treatment that makes it even more useful all year round. Kranman 620S has a separate independent pump for drive, crane and unit. The crane is heavily dimensioned and is 100% parallel, range 5.4 meters and lifting force 700 kg on a straight arm. To get the full potential of the crane, we have developed a weight-optimized and stable chassis, which does not require support legs. Visibility and comfort in the cab are hard to beat. You can sit in the chair and look straight up at the treetops. Control of the machine, crane and unit is in the armrests, this means that you never have to reach. The servos levers make the movement of the unit between the trees very easy and accurate. This also reduces the risk of tribal damage. The driving pedals are on the floor, one pedal for the front and one for the back. If you release the pedal, the handbrake and waist lock will run automatically. The parallel operation works twice as fast in and out compared to a normal crane. Since the engine is located at the other end of the machine and the cab is rubber suspended, the cab becomes silent. Apart from the unit, the machine is built without computer controlled electronics. All so that you as a customer will get a reliable machine that can be stored and used in its proper environment, the forest. We build machines that are easy to drive, reliable and if anything should happen; easy to repair. Stub treatment is used to counteract root rot/rotticka that has become more common in our forests. The fungus spreads when the daytime temperature goes above 5 degrees. Equipment: Click here to compare equipment

  • Diesel engine, 24 hp 4 cylinders
  • Wheel and diameter measurement on the unit
  • 12 LED lights
  • Servo levers in the armrests
  • Double-armed windscreen wipers
  • Water-borne heating in the cab
  • Automatic waist lock
  • Automatic brake
  • Indoor lighting
  • Extra sound attenuation in cab
  • Constant pressure pump for the unit
  • Tanmeter
  • Rear view camera
  • Radio with Bluetooth
  • Saw holder
  • Transport gear (10 km/h)
  • Rotary absorbers in rotator link
  • USB charging socket
  • Radio-controlled winch with 30 m wire
  • Crane tilt
  • Air-dampened chair
  • Heat in the chair
  • Crane dampers with accumelators
  • Diesel heater starting via mobile
  • AC
  • Stub treatment

Kranman 620s harvester takes care of wind traps

Kranman harvester 620s reworks 35 cm tree

Specification

Engine modelKubota 1505
Max work lap2,300 rpm
Effect 24.8 hp
Torque93 Nm
Displacement1.49 litres
TransmissionHydrostat
Braking system, front and rearHydraulic lamella brakes
Electrical system, voltage12 v
Battery71 Ah
Generator40 A
Lighting LED3-12 pcs 15W
Crane, length5.4 m
Lifting force 5.4m700 kg
Max speed10 km
weight4070 kg
Front wheels400/16-15,5"
Rear wheels400/55-22,5"
Fule tank70 litres
Fuel consumption3.5 L/h
Ground clearance35 cm
Length560 cm
Width167 cm
Height290 cm
Folding diameterMax 30cm
Twig diameter2-25 cm
Saw bar14"
Saw chain2 mm, 404
