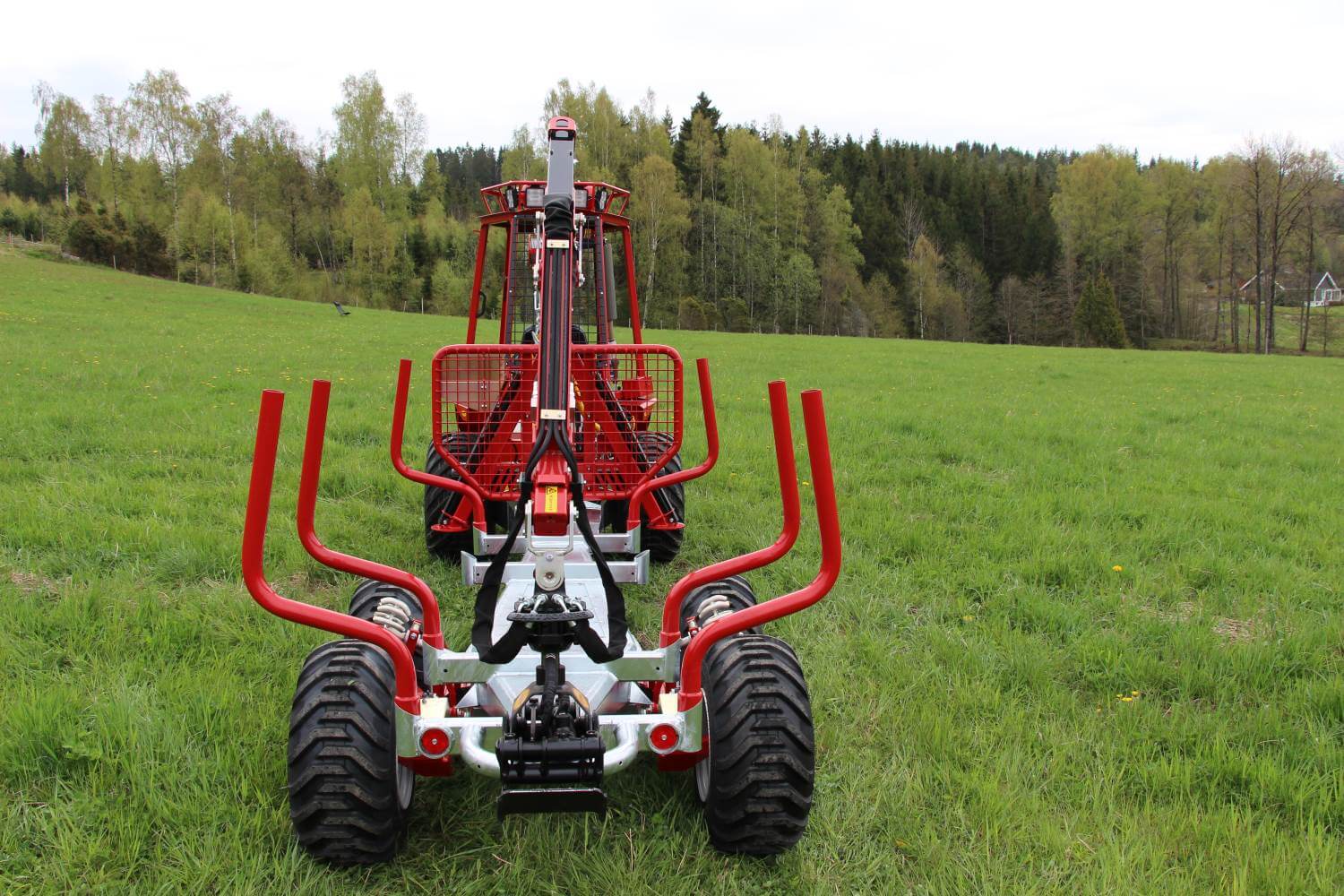

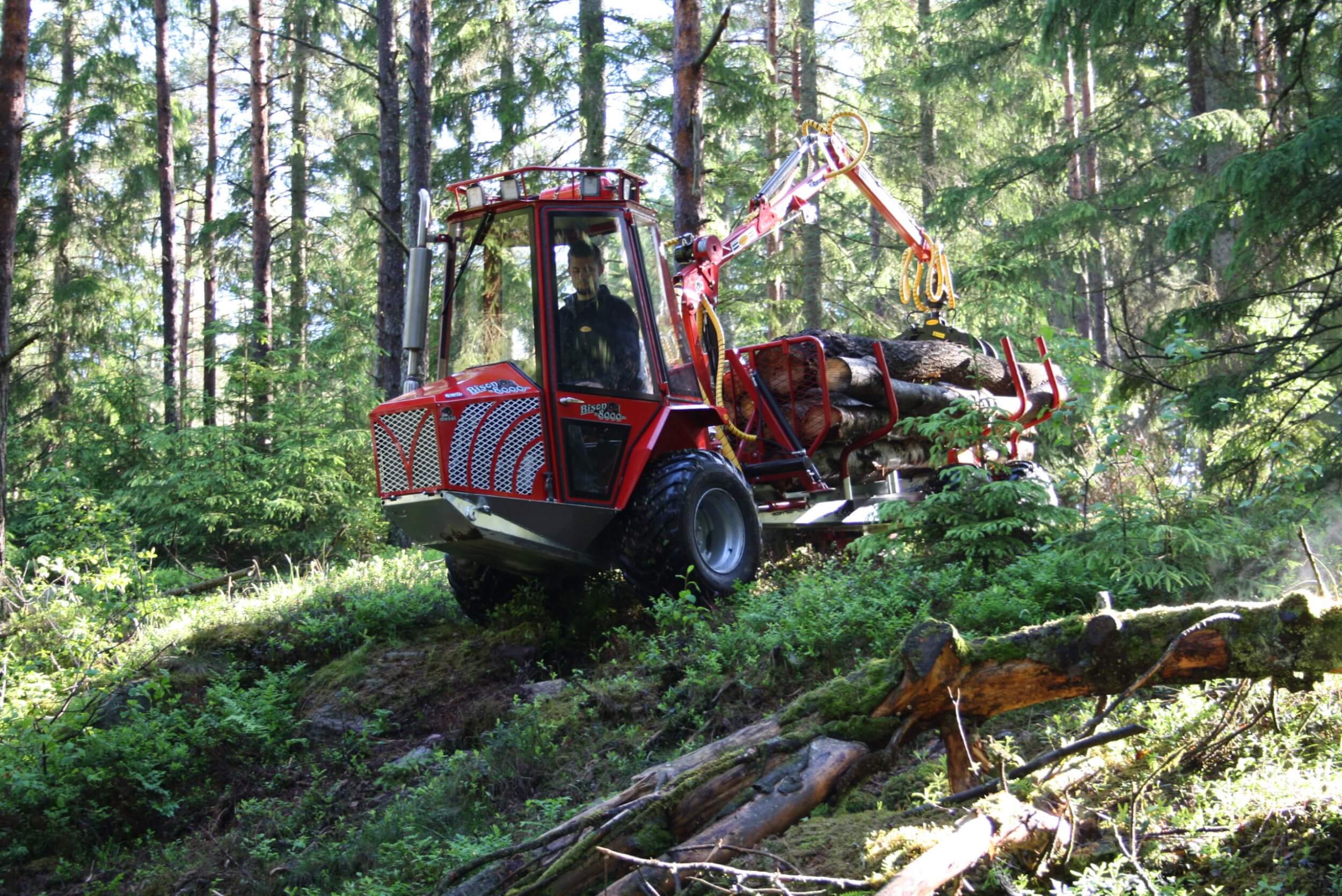

The Bison 8000 6WD is a mid-range mini forwarder.

The machine is hydrostatic, which means that it has a drive pedal which regulates the speed. Releasing the pedal, the machine stops and stands still until you press the pedal again. The direction forward or back is selected easily with a button on the side of the chair.

With a Bison 8000, you will do a very effective job. You can sit back and drive the machine on a working RPM, release the pedal, load the log and press the pedal and you’re off. This without having to drop down the machine at low RPM, put in neutral or pull the handbrake.

Bison 8000 is very smooth because the middle of the machine is located almost in between the front and rear wheels. This means that the rear of the machine runs almost in the same track as the front wheels. Despite its narrow width of only 150 cm, the Bison 8000 is very stable. This is thanks to its low center of gravity. Bison 8000 has a high and low gear (7 and 3.5 km / h). The low and high gear have a 6-wheel drive. Transport gear is optional, the machine will then run on 14 km / h.

Kranman Bison 8000 spreads gravel with DX220 flake and vibro.

Specification


Engine:

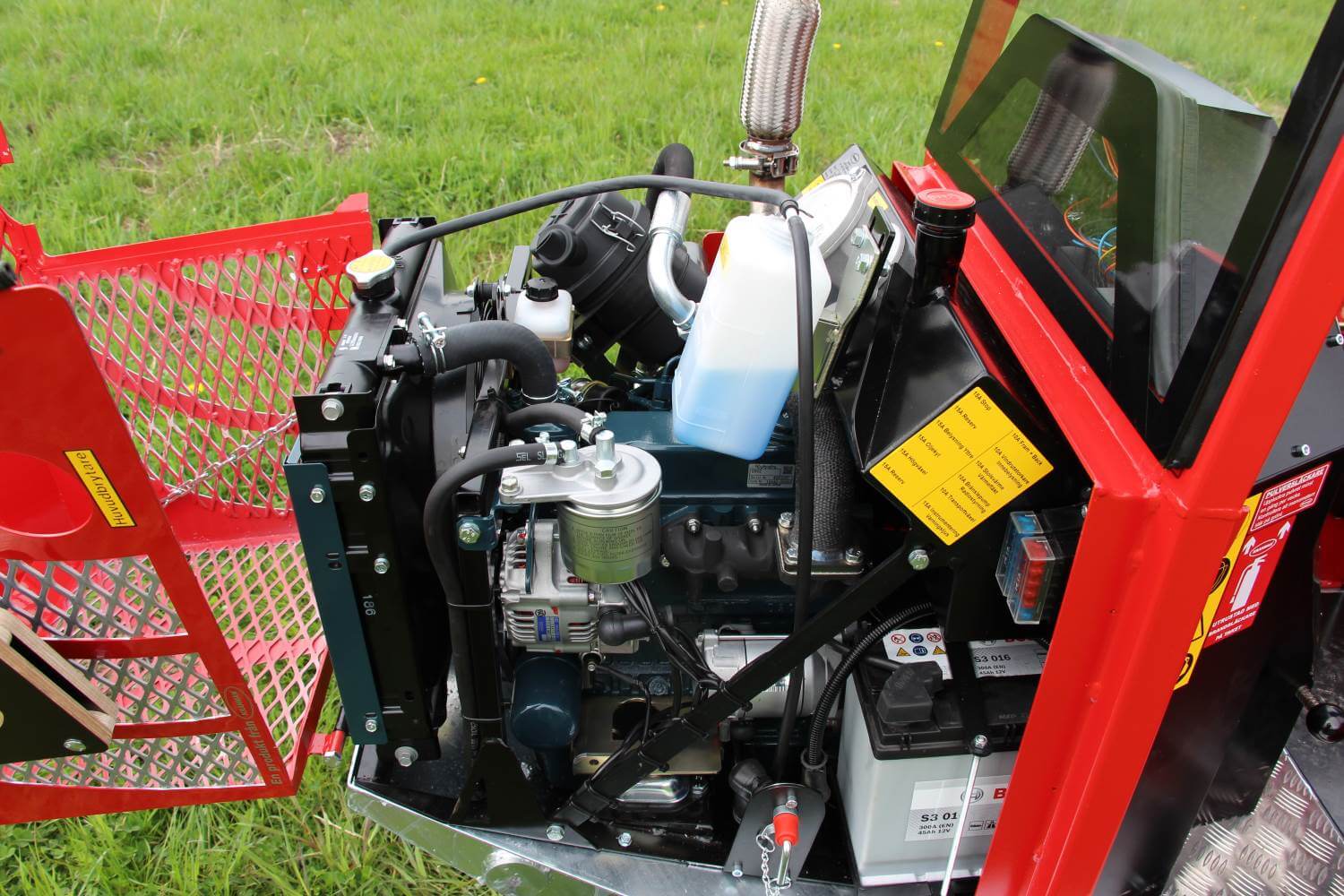

Engine model Kubota 902 Diesel, 24.7hp, 3 Cylinders
Max work lap2.800rpm
Transmission, power transmissionHydrostat
Torque56Nm

Braking system:
ForwardHydraulic disc brakes
BehindHydraulic

Electrical system:
Volt12V
Battery45Ah
Generator40A

Specifications:
Top speed standard:7km/h
Transport gear14km/h
Max load2,000kg
Fule tank20L
Fuel consumption1.7L/h
Last area1m²
Weight1,390kg
Dimensions LxWxH570x150x230

Specification


Engine:
Engine model Kubota 902 Diesel, 24.7hp, 3 Cylinders
Max work lap2.800rpm
Transmission, power transmissionHydrostat
Torque56Nm

Braking system:
ForwardHydraulic disc brakes
BehindHydraulic

Electrical system:
Volt12V
Battery45Ah
Generator40A

Specifications:
Top speed standard:7km/h
Transport gear14km/h
Max load2,000kg
Fule tank20L
Fuel consumption1.7L/h
Last area1m²
Weight1,390kg
Dimensions LxWxH570x150x230

Compare our bundles - what is included?

Standard Comfort Pro Pro Plus
  • Full galvanized chassis
x x x x
  • Front window
x x x x
  • 24hp, 3 cylinder Kubota diesel engine
x x x x
  • Fully hydraulic drive 6WD
x x x x
  • 6WD hydraulic socket for ex. tipper trailer
x x x x
  • Roof with front cover and lightbar
x x x x
  • Fire extinguisher 6kg
x x x x
  • 12V power outlets
x x x x
  • Stainless steel exhaust system
x x x x

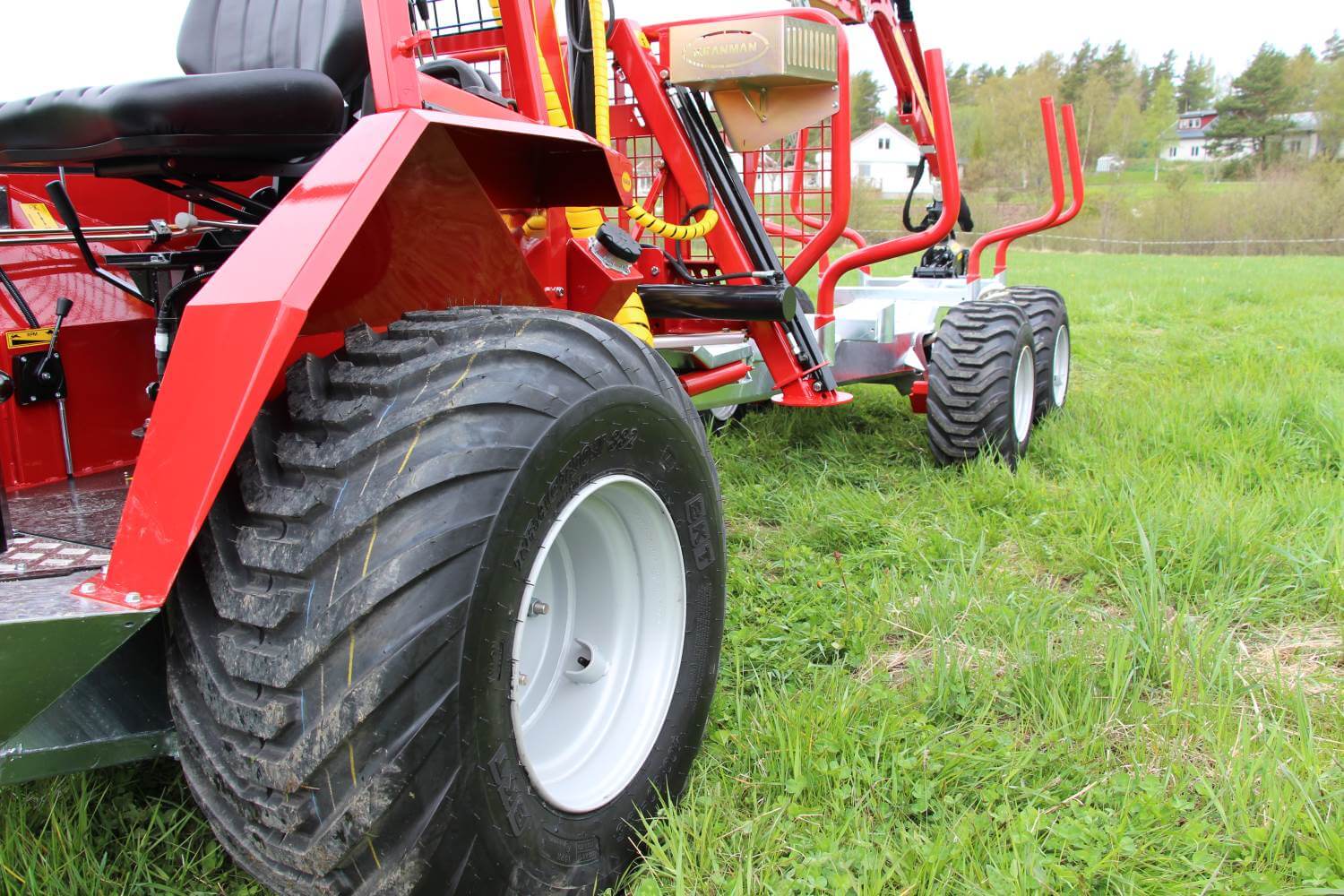

  • Front wheel 400/60.15.5
x x x x

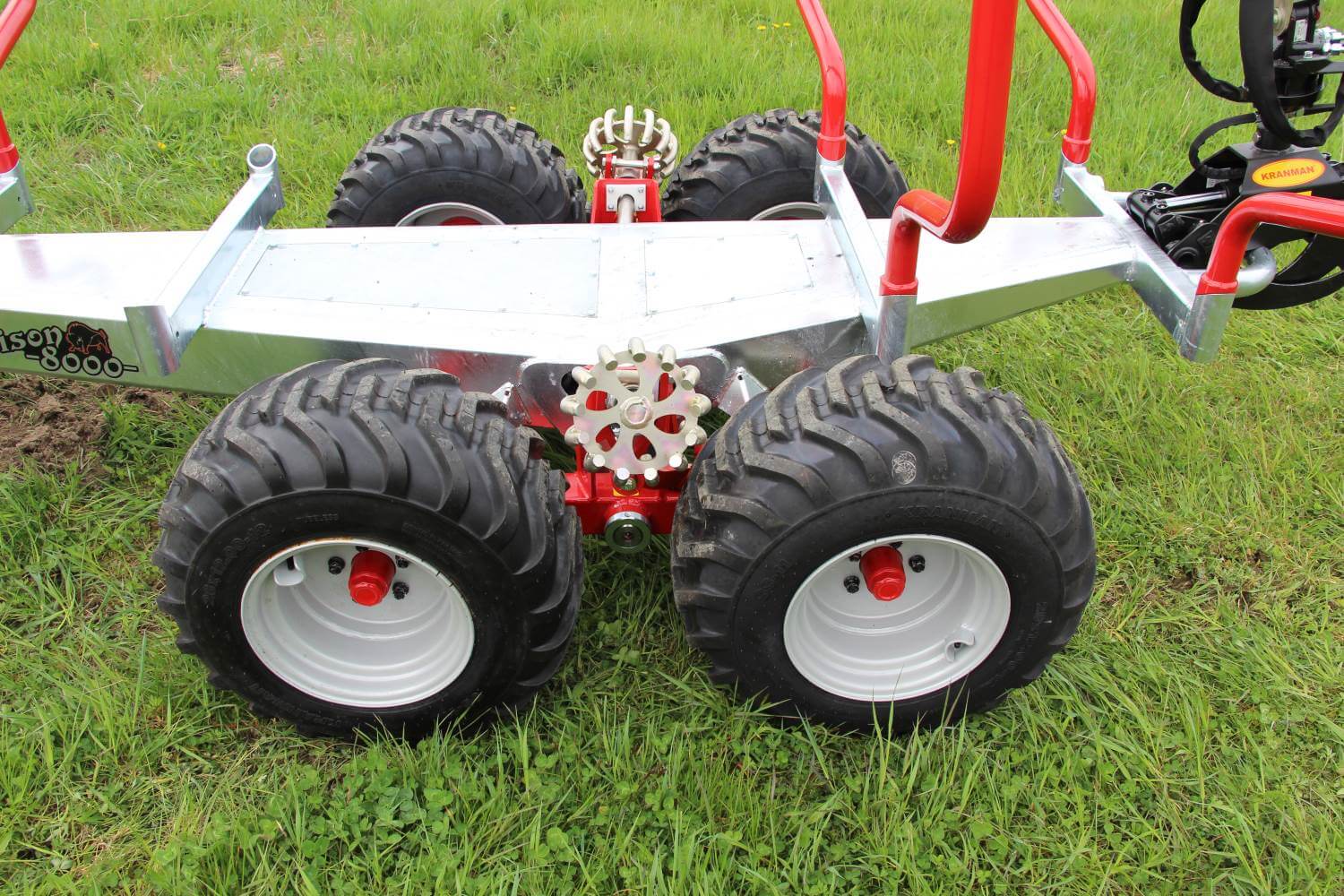

  • Rear wheel 26x12.00-12
x x x x
  • Crane 30-50
x
  • Crane M36
x x x
  • Double Command
x x x x
  • Number of bars
4 6 8 8
  • Number of LED lights
4 4 8 12
  • Valve package
x
  • Valve package for 2spak el on/off
x x x
  • Winch HV500
x x x
  • Transport gear
x x x
  • Holder for chainsaw
x x x
  • Bracket for gas container
x x x
  • Storage box on the gate
x x x
  • Prepared for salvage winch
x x x
  • Driver's seat with electric heating
x x
  • Cabin with heat
x x
  • Crane dampers
x x
  • Fuel gauge
x x
  • Engine heater 400W
x x
  • Storage box on the roof
x
  • 4 flash lights
x
  • Armrests for the driver's seat
x
  • Eletric outrigger warning
x
VAT not included in prices.
