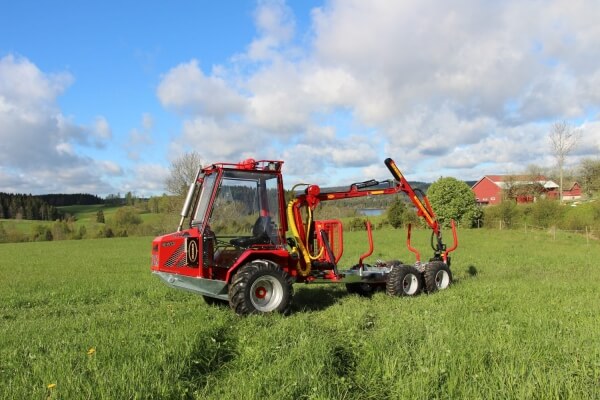

Bison 6000X 6WD is our smallest mini forwarder, bison 6000X is very easy to drive and agile.

The machine is hydraulically driven. This means that the machine has stepless travel pedals that regulate the speed. Releasing the pedal, the machine stops and stands still until you press the pedal again. There are two pedals for the direction of travel, one for forward and one for reverse. With a Bison 6000x you can do a very effective job. You can sit backwards and drive the machine on a working RPM, release the accelerator, unload the log and you’re off. This without having to drop down the machine at low RPM, put in neutral or pull the handbrake.

The Bison 6000x is very agile because the waist of the machine is located almost midway between the front and rear wheels. This means that the rear of the machine runs almost in the same track as the front wheels. Despite its narrow width of only 135 cm, the Bison 6000x is very stable. This is thanks to its low center of gravity. Bison 6000x has high and low gear (7 and 3.5 km / h). The low and high gear have a 6-wheel drive. Transport gear is optional, the machine will then run on 14 km / h.

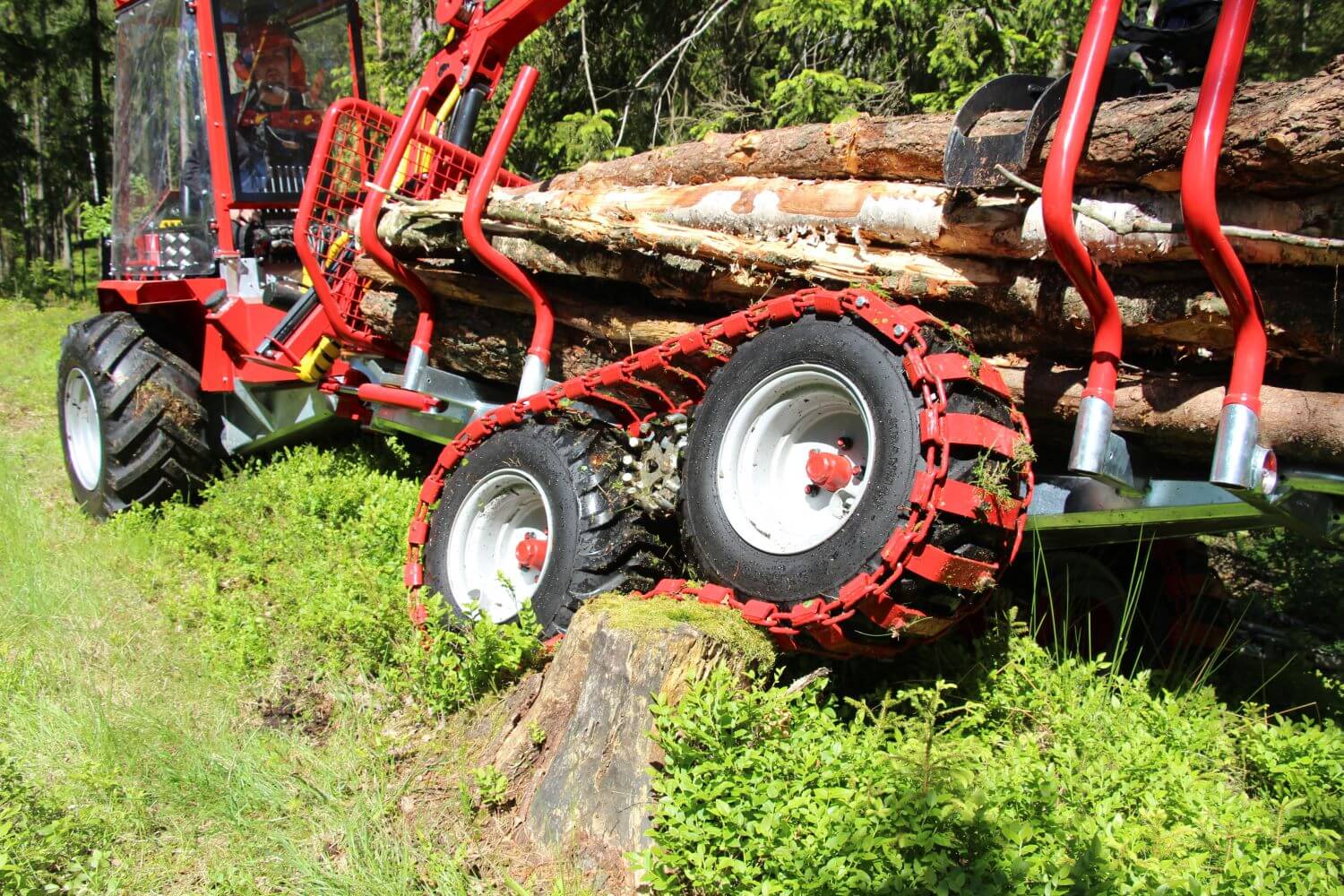

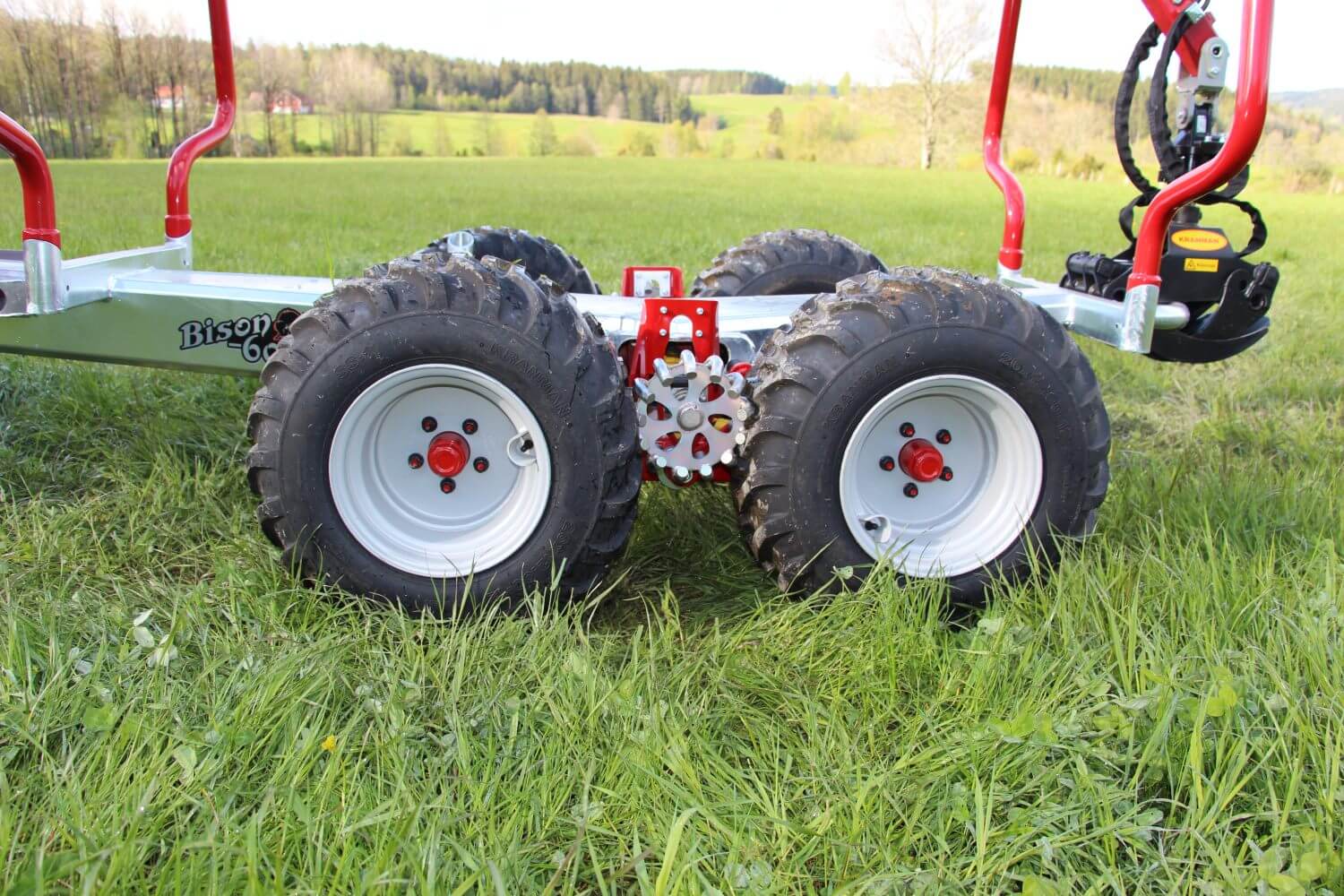

Kranman Bison 6000x with plastic strap and 46 cm wide front wheels

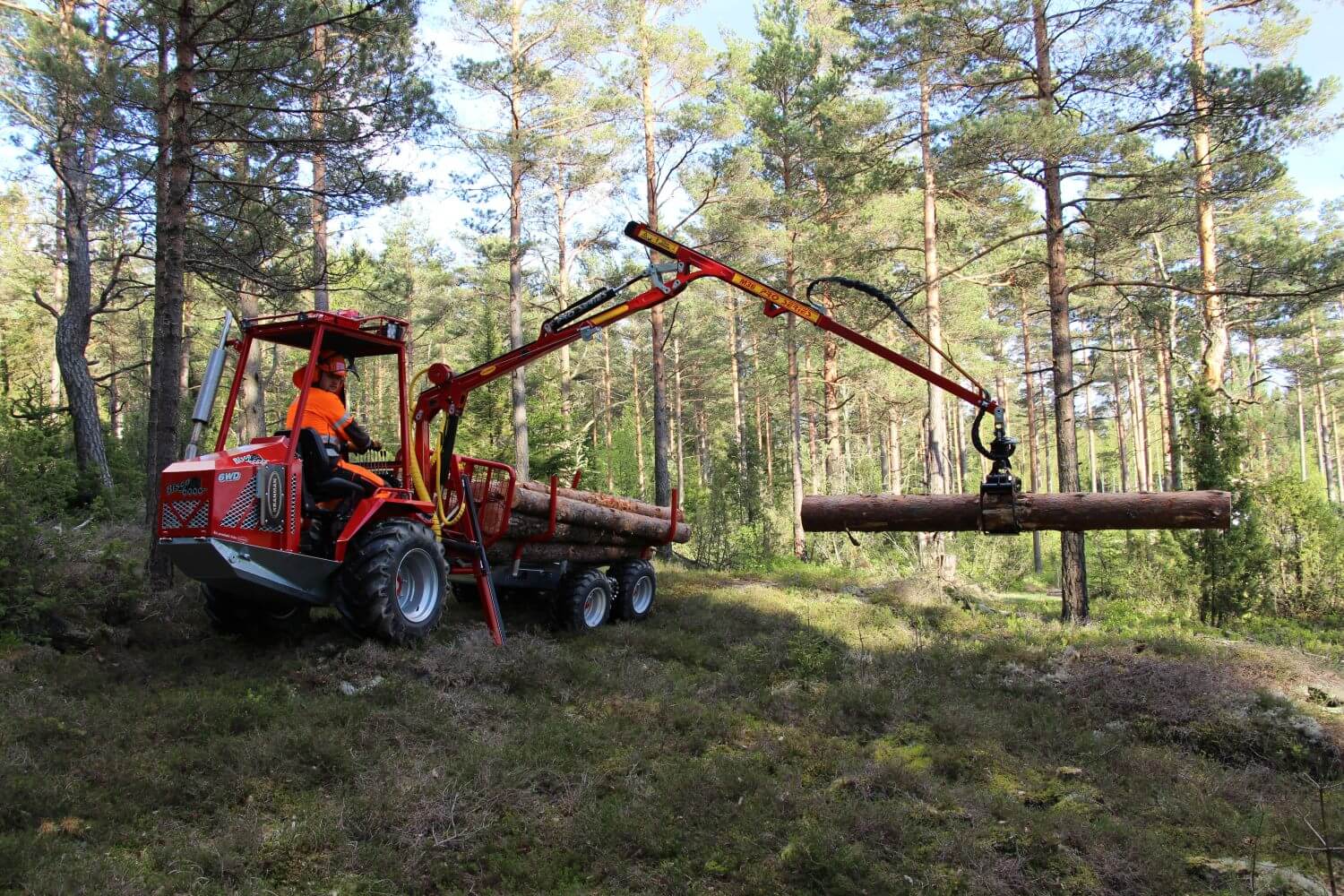

Bison 6000x in first thinning

Kranman Bison 6000x Ditch Cleaning with Ditch Bucket DS55

Specification


Engine:
Engine modelGX630, 688cc, 21hp
Max work lap3,600rpm
Transmission, transmissionHydraulic
Torque48.3Nm

Braking system:
ForwardHydraulic disc brakes
BehindHydraulic

Electrical system:
Volt12V
Battery21Ah
Generator20A

Specifications:
Top speed standard:7km/h
Max load1,900kg
Weight 1,330kg
Dimensions LxWxH560x135x225

Specification


Engine:
Engine modelGX630, 688cc, 21hp
Max work lap3,600rpm
Transmission, transmissionHydraulic
Torque48.3Nm

Braking system:
ForwardHydraulic disc brakes
BehindHydraulic

Electrical system:
Volt12V
Battery21Ah
Generator20A

Specifications:
Top speed standard:7km/h
Max load1,900kg
Weight 1,330kg
Dimensions LxWxH560x135x225

Compare our bundles - what is included?

Standard Comfort Pro Pro Plus
  • Full galvanized chassis
x x x x
  • Front window
x x x x
  • 21hp Honda engine
x x x x
  • Fully hydraulic drive 6WD
x x x x
  • Variable high / low gear
x x x x
  • Extra hydraulic for example tipper trailer
x x x x
  • Roof with front cover and lightbar
x x x x
  • Fire extinguisher 6kg
x x x x
  • 12v power outlet
x x x x
  • Stainless steel exhaust system
x x x x
  • Crane 30-50
x
  • Crane M36
x x x
  • Double Command
x x x x
  • Number of bars
4 6 8 8
  • Number of LED lighting
4 4 8 8
  • Front wheels 11.5/80-15.3
x x
  • Front wheels 15.0/55-17
x x
  • Rear wheels 26x12,00-12
x x x x
  • Multi-lever valve package
x
  • Valve package with 2 lever el on/off
x x x
  • Winch HV500
x x x
  • Transport gear
x x x
  • Holder chainsaw
x x x
  • Storage basket combi dunk
x x x
  • Storage box gate
x x x
  • Prepared for salvage winch
x x x
  • Driver's seat with electric heating
x x x
  • Crane dampers
x x
  • Fuel gauge
x x
  • Hydraulic oil cooler on roofs
x x
  • Storage box roof
x
  • 4 flash lights
x
  • Driver's seat armrests
x
VAT not included in prices.
